ATOMSTACK A5 M50 PRO Laser Engraving Machine





Engraving area: 410 * 400mm	Electric power: 40W
Laser output optical power: 5~5.5W	Laser wave: 455 ± 5 nm
Engraving accuracy: 0.01mm	Net weight of equipment: 4.3kg
Data transmission type: USB connection
Focusing type: fixed focus laser, no focusing
Operating software: Laser GRBL, LightBurn, with Win XP/Win7/Win 8/Win10/Win 11 and Mac system (LightBurn)

ATOMSTACK A Series:

Specification	ATOMSTACK A5 PRO	ATOMSTACK A5 M50	ATOMSTACK A5 M50 PRO
Electric Power	40W	40W	40W
Optical Output Power	5–5.5W	5–5.5W	5–5.5W
Laser Spot	Compressed Spot 0.08mm	Compressed Spot 0.08mm	Quadruple-Lens Double Compression Spot
Focusing Method	Hex Wrench	Manual Knob	Manual Knob

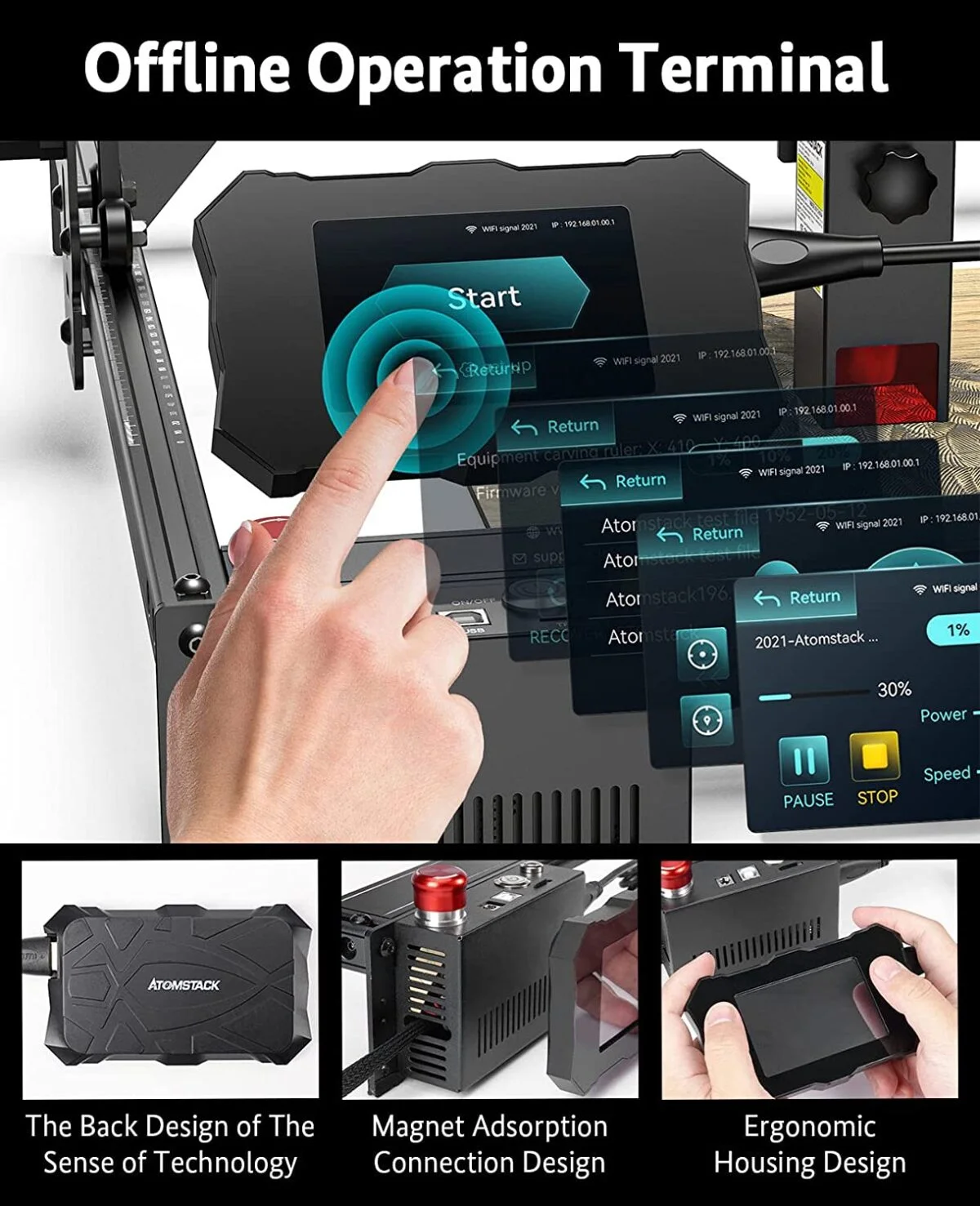

Independent Control Terminal	✕	✕	✓
Engraving Materials	All wood, white paper, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective plating and lacquered metal, blackened utility knife, 304 mirror stainless steel, matte stainless steel, ceramic, acrylic	All wood, white paper, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective plating and lacquered metal, blackened utility knife, 304 mirror stainless steel, matte stainless steel, ceramic, acrylic	All wood, white paper, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective plating and lacquered metal, blackened utility knife, 304 mirror stainless steel, matte stainless steel, ceramic, acrylic
Cutting Materials	1/5″ wood and acrylic, leather, some thin plastic boards, cardboard, non-woven fabric	1/4″ wood and acrylic, leather, some thin plastic boards, cardboard, non-woven fabric	0.8″ wood and 0.6″ acrylic, leather, some thin plastic boards, cardboard, non-woven fabric

Product Parameters:

Parameter	Details

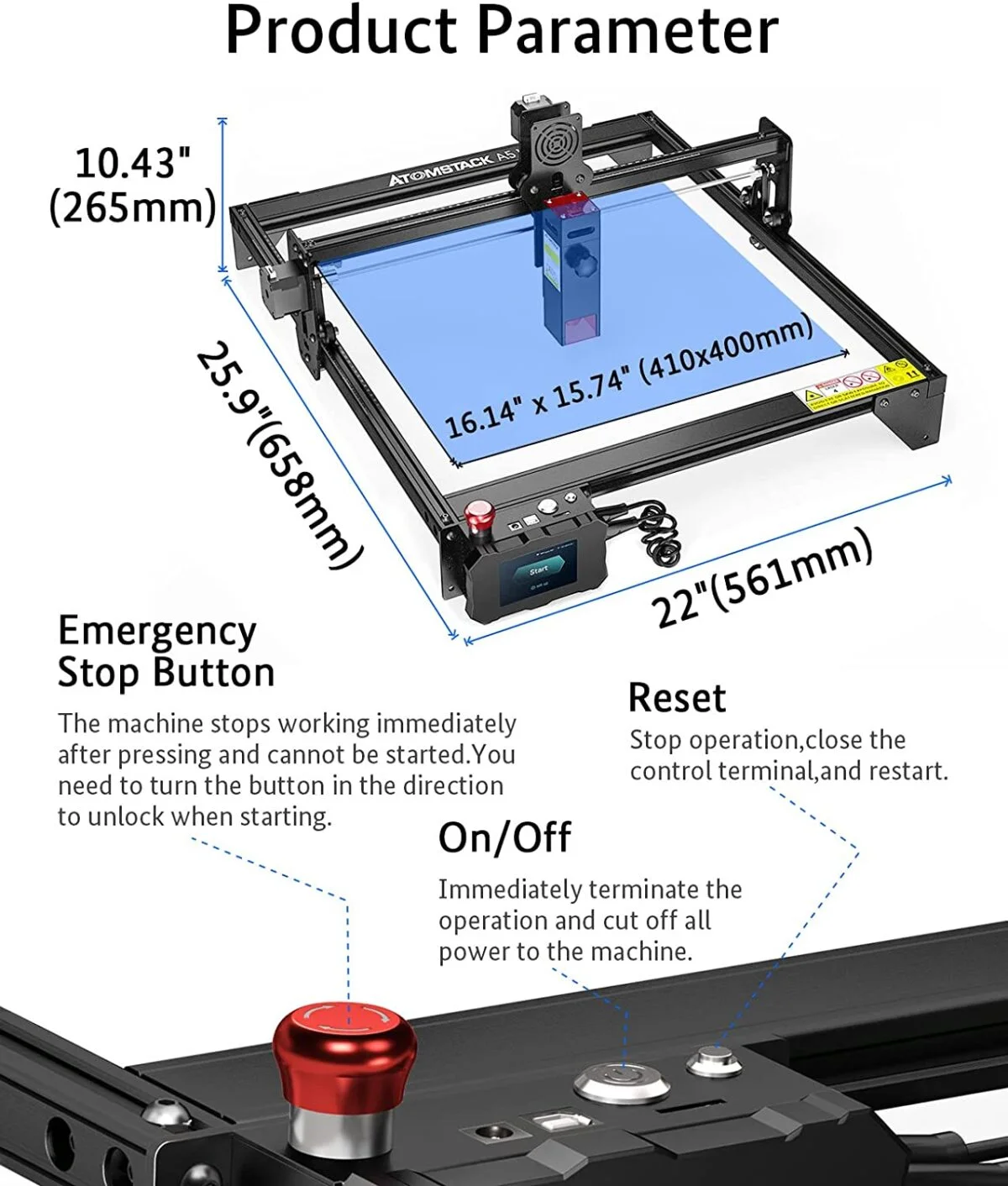

Working Area	410 × 400mm
Engraving Objects	Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective electroplating layer and paint surface layer metal, 304 mirror stainless steel, glass, ceramics, cotton cloth, slate
Cutting Objects	Cardboard, non-woven fabric, wood board, acrylic, some thin plastic board, sponge
Laser Output Optical Power	5–5.5W
Machine Power	40W
Focusing Method	Fixed Focus Laser; no manual focusing required
Laser Protective Cover	Protects the user’s eyes and helps prevent pets from accessing the laser spot
Electric Power	40W
Input Voltage	AC100–240V, 50/60Hz
Output Voltage	DC12V, 5A
Laser Wavelength	445 ± 5nm
Engraving Accuracy	0.01mm
Operating Software	LaserGRBL (Windows XP / 7 / 8 / XP / 10 / 11); LightBurn (Windows / Mac OS / Linux)
Input Format	NC, BMP, JPG, PNG, DXF, etc.
Data Transmission Method	USB Connection
Emergency Stop	Yes
Stopper	Yes
Reset Switch	Yes
Laser Sintering Temperature	Up to 1200°C
Expandable Engraving Size	Up to 410 × 850mm with extension kit



Packing List:

Item	Quantity
Mounting Screw	1×
Tool Kit	1×
Foot Pad Foam	4×
Film	1×
Acrylic Sheet	3×
Wood Chips	3×
Wire Tie	10×
Desiccant	1×
Brush	1×
Clean Cloth	1×
Card Reader	1×
TF Card	1×
Power Adapter	1×
Instruction Manual	1×
Data Line	1×
Touch Screen Components	1×
HDMI Cable	1×
Laser Module	1×
Cutting Pad	1×
X-Axis Assembly	1×
Y-Axis Left Profile	1×
Y-Axis Right Profile	1×
Profile on the Base	1×
Under the Base Profile	1×
Foot Bracket	3×

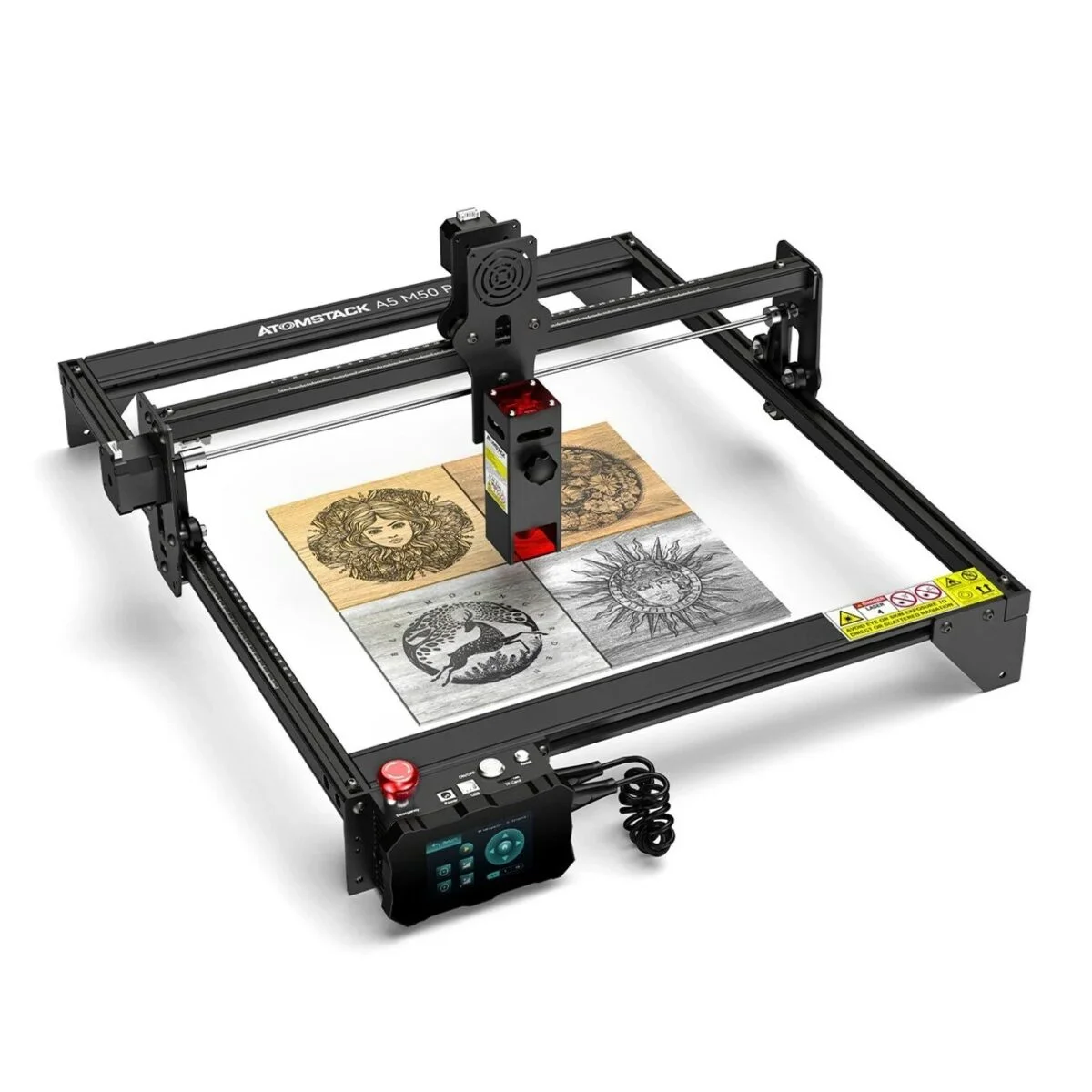

 Atomstack A5 M50 Pro

The Atomstack A5 M50 Pro is a compact laser engraving machine. It offers precise engraving for creative and business projects. Moreover, the machine supports different suitable materials. Therefore, it works well for workshops, makers, hobbyists, and small businesses.

 Powerful Laser Engraving

The Atomstack A5 M50 Pro provides strong laser engraving performance. As a result, it can create detailed designs on suitable materials. In addition, the machine supports many creative applications.

 Precise Engraving

The laser creates fine engraving details. Moreover, the stable frame supports smooth movement. Therefore, you can create clean logos, names, artwork, and patterns.

 Large Working Area

The machine provides a useful working area for different projects. Furthermore, the open-frame design makes material placement easy. As a result, you can work comfortably on various projects.

 Strong Frame Design

The Atomstack A5 M50 Pro uses a sturdy frame structure. This design supports stable machine movement. In addition, the solid frame helps maintain consistent engraving results.

 Material Compatibility

You can use the machine with many suitable materials. For example, it can engrave wood, plywood, leather, cardboard, acrylic, and other compatible materials. Moreover, material results can vary according to thickness and surface type.

 Easy Operation

The machine supports compatible laser engraving software. Therefore, you can prepare designs and control engraving jobs from your computer. In addition, the simple setup makes daily operation convenient.

 Software Support

The Atomstack A5 M50 Pro supports popular laser engraving software. For example, you can use LightBurn or LaserGRBL. Furthermore, these software options provide useful tools for design and machine control.

 Safety Features

The machine includes safety features for laser operation. Moreover, proper laser protection helps reduce exposure risks. Therefore, always follow the manufacturer’s safety instructions during operation.

 Creative Applications

The machine suits many creative projects. For example, you can create personalized gifts, wooden signs, decorations, artwork, and custom products. In addition, small businesses can use it for product personalization.

 Key Features

– Compact laser engraving machine
– Precise laser engraving
– Suitable for creative projects
– Strong frame structure
– Easy material placement
– LightBurn compatibility
– LaserGRBL compatibility
– Suitable for various materials
– Useful for hobby and business applications

Note:

●When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.
● Please do not touch the laser emitter with your hand, or it may burn your hand.
● Please avoid a strong impact on the machine.
● Children under 14 are not allowed to use this product and children over 14 need adult supervision.
● The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.
