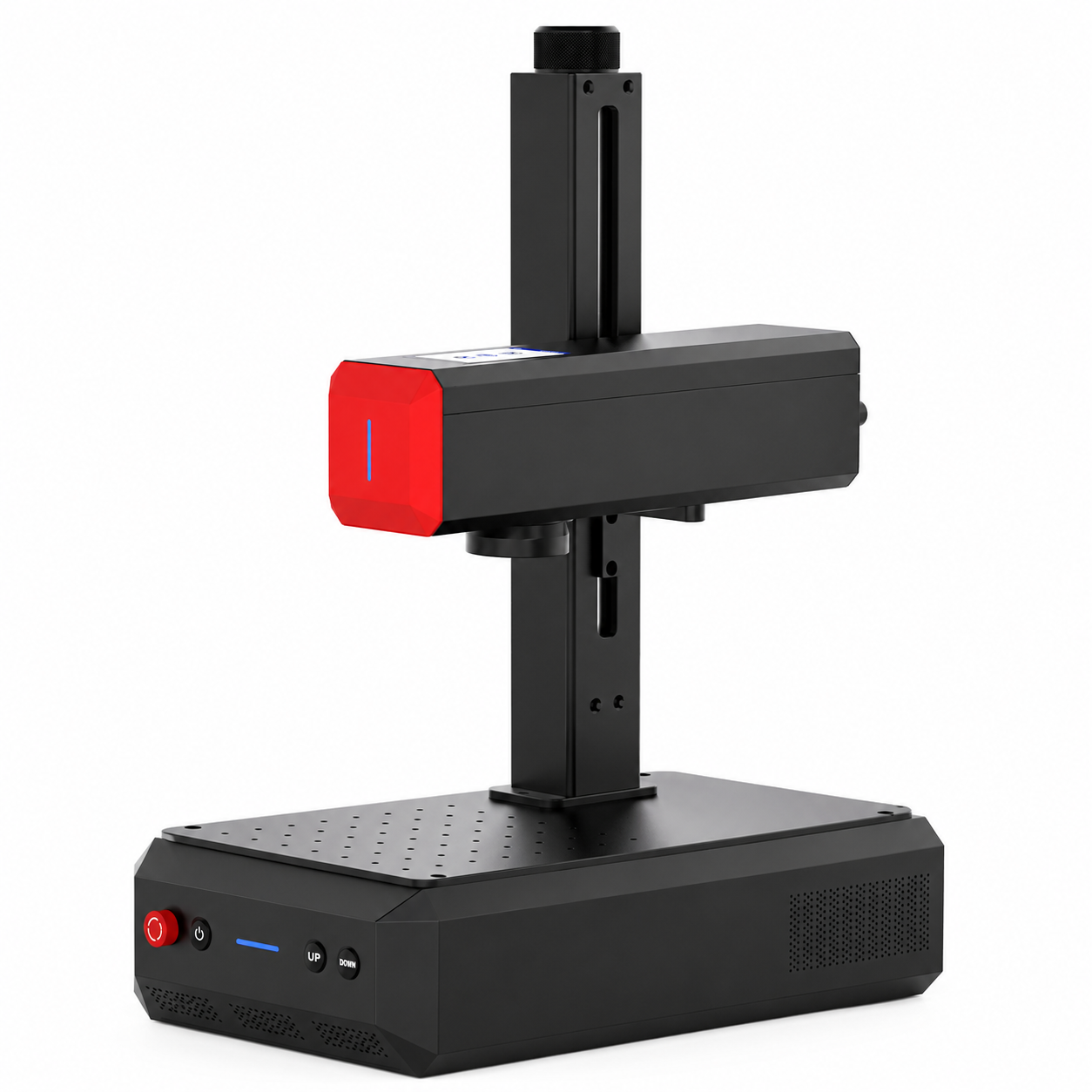

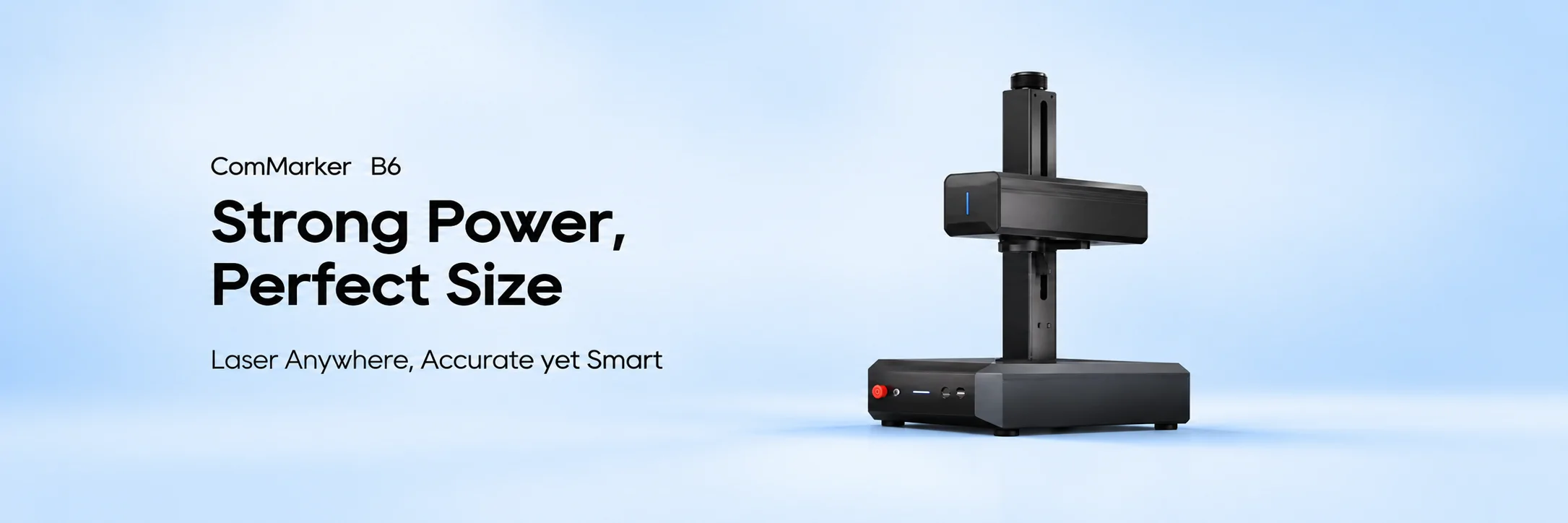

ComMarker B6 JPT MOPA Fiber Laser Engraver
| Effect Power | B6 MOPA 20W, B6 MOPA 30W, B6 MOPA 60W |
|---|---|

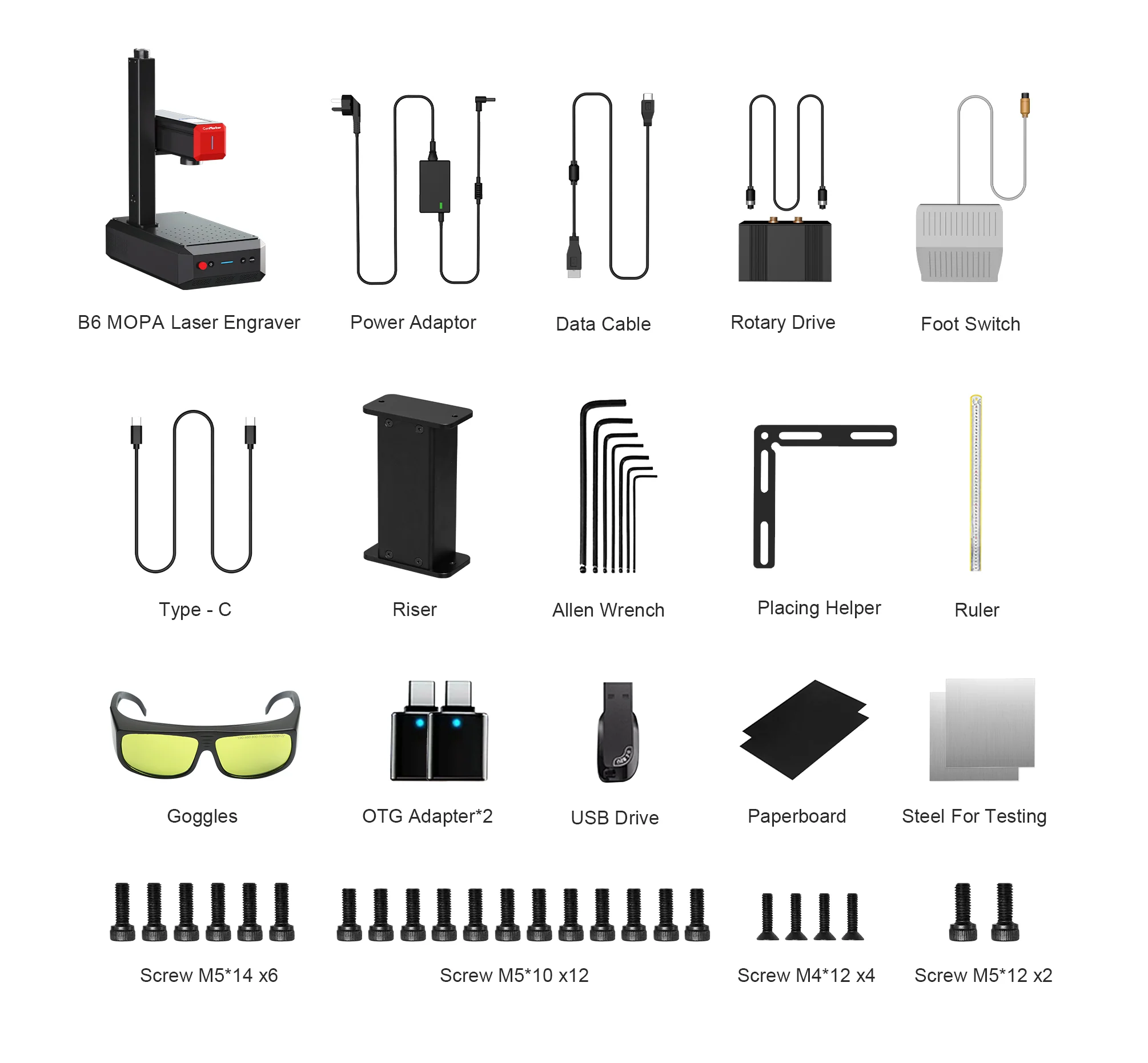

| Package | B6 MOPA Basic Bundle, B6 MOPA Rotary Bundle, B6 MOPA Safety Bundle, B6 MOPA Ultimate Bundle |
Book a Personalized Product Demo
ComMarker B6 MOPA – Technical Specifications
| Category | Specification | Details |
|---|---|---|
| Laser Technology | Laser Type | JPT MOPA Fiber Laser |
| Laser Power | 20W / 30W / 60W | |
| Laser Wavelength | 1064 nm | |
| Expected Service Life | 100,000 hr | |
| Processing Capacity | Processing Mode | Laser Engraving, Laser Cutting, Color Marking |

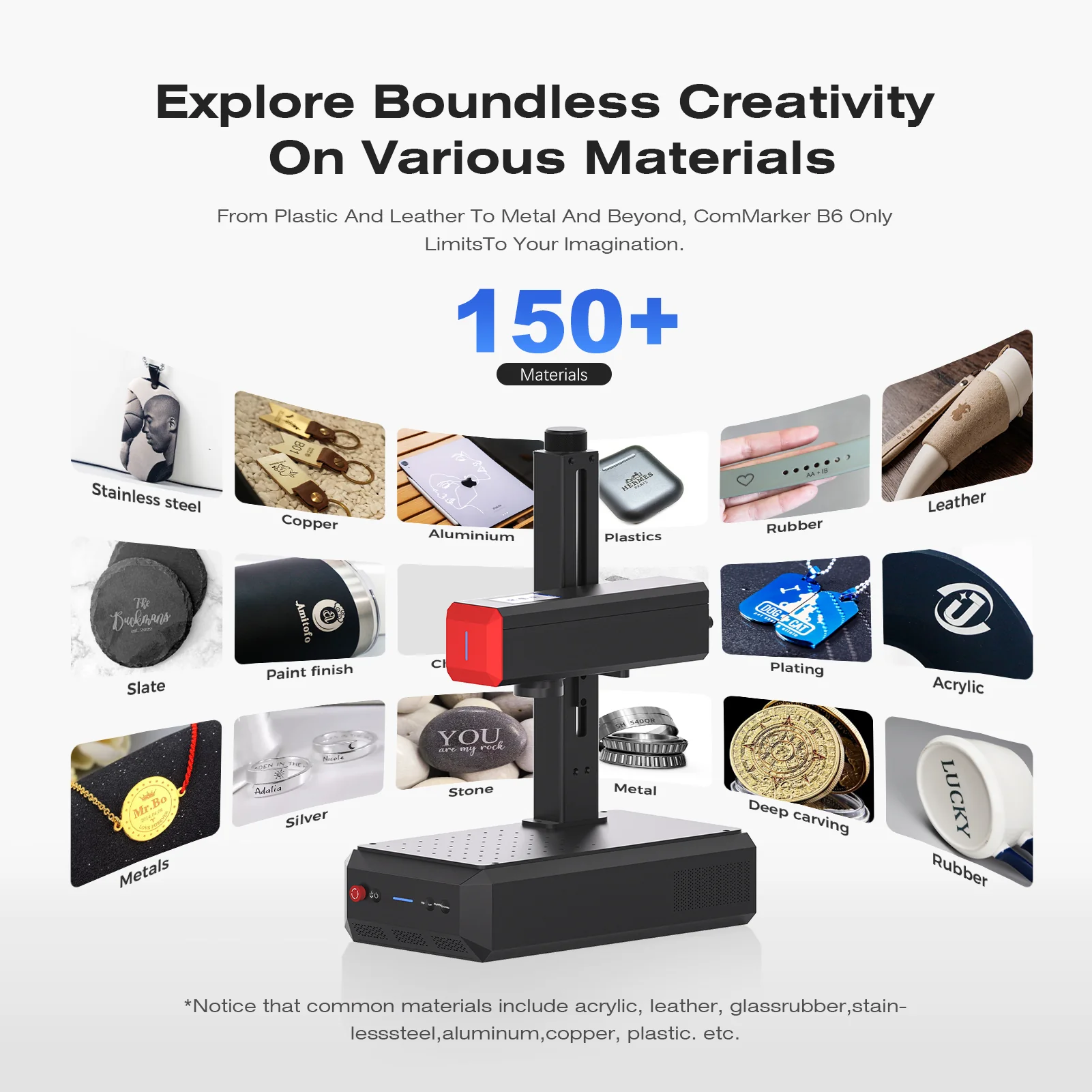

| Supported Materials | Stainless Steel, Aluminum, Brass, Copper, Gold, Silver, Stone, Black Acrylic, Leather, Plastic | |
| Working Area | 5.9″ × 5.9″ (150 × 150 mm) | |

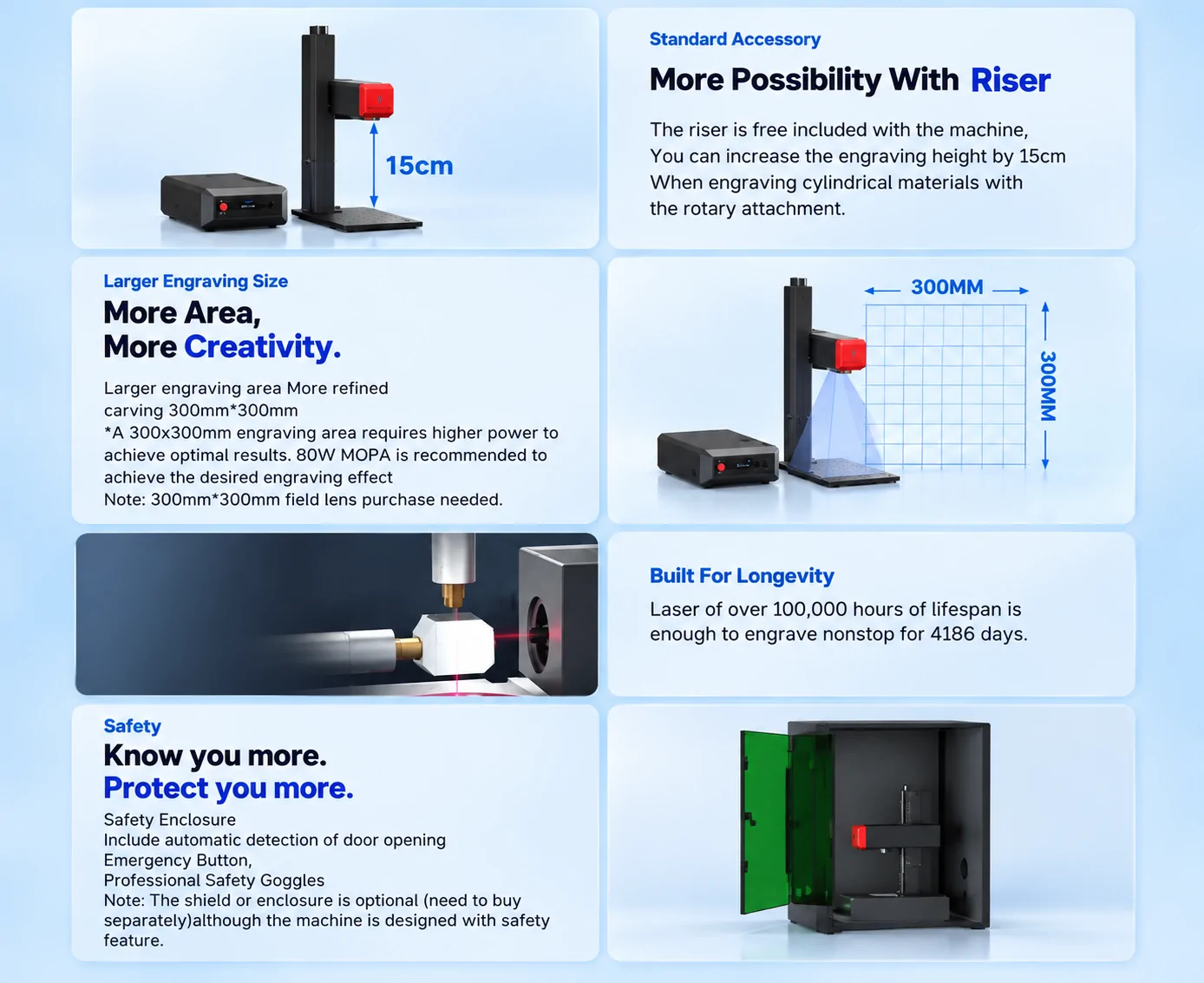

| Optional Working Area | 11.8″ × 11.8″ (300 × 300 mm) with Optional Lens | |
| Max. Working Speed | 15,000 mm/s | |
| Max. Laser Cutting Capacity (Stainless Steel) | 0.6 mm in Multiple Passes (20W) | |
| 0.8 mm in Multiple Passes (30W) | ||
| 2 mm in Multiple Passes (60W) | ||

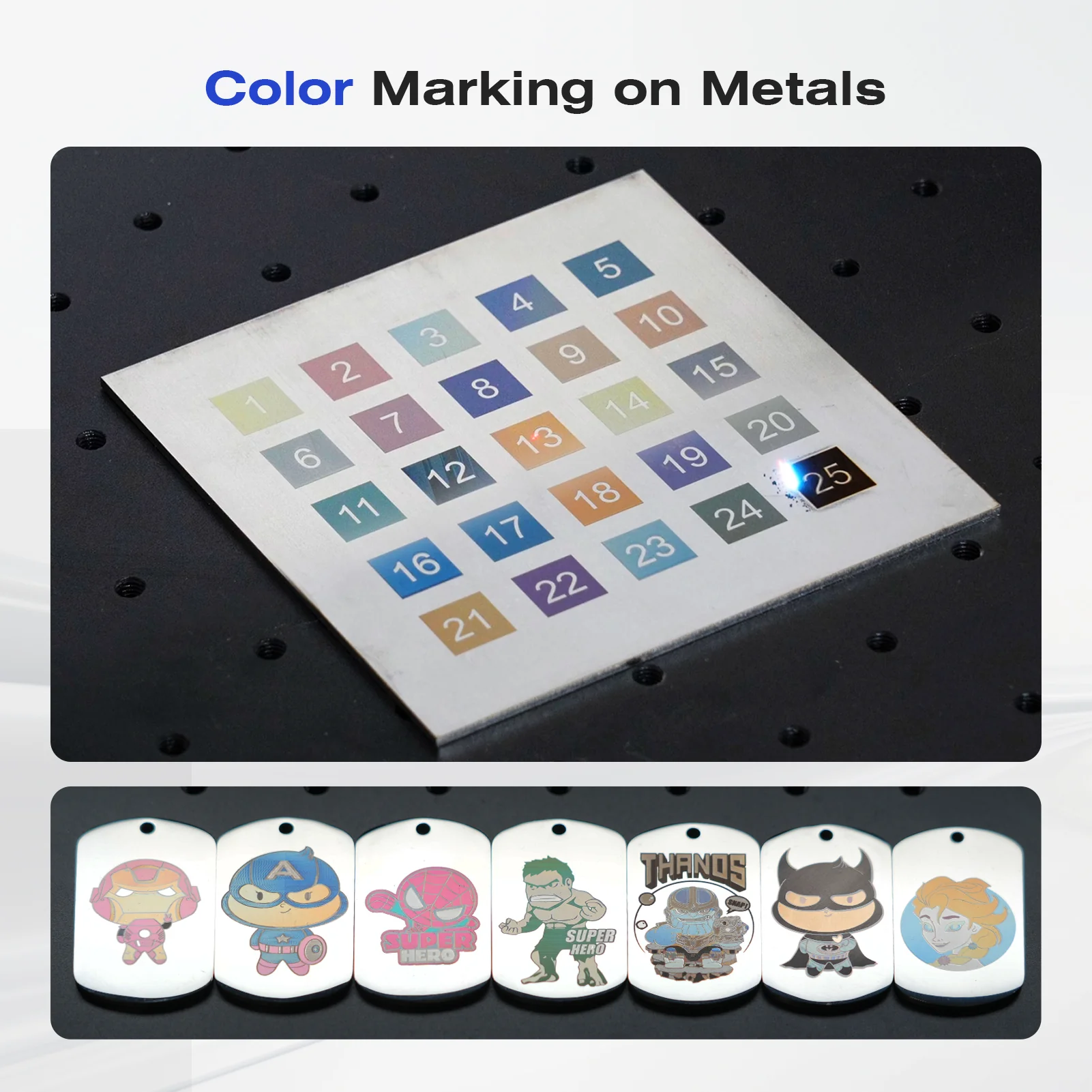

| Color Marking | Supported | |
| 360° Rotary Engraving | Supported | |
| Accuracy & Precision | Laser Spot Dimension | 0.015 mm |
| XY Positioning Accuracy | 0.001 mm | |

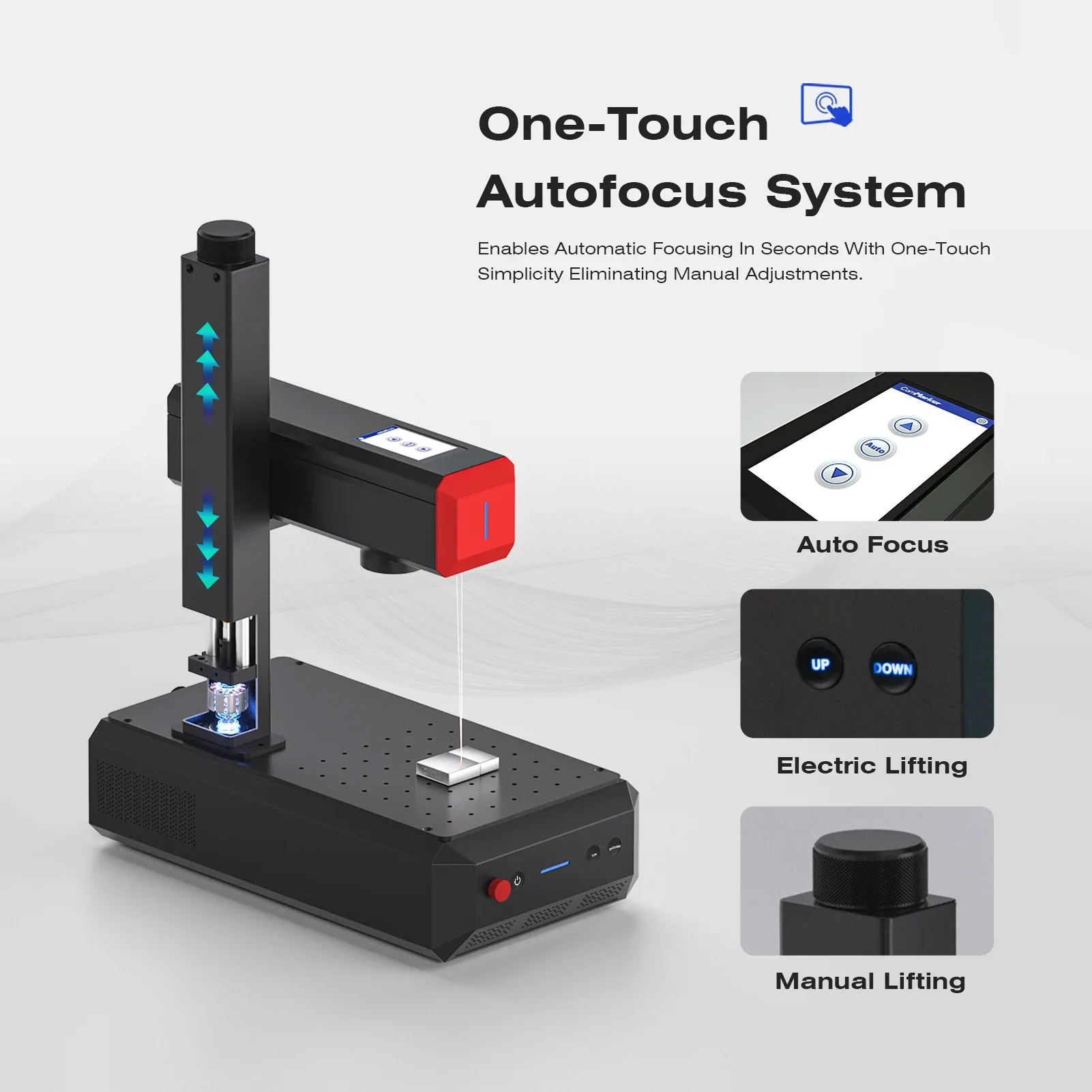

| Focus Mode | Auto Focus | |
| Z Height Measuring Method | Triangulation | |
| Z Height Measuring Accuracy | 0.001 mm | |

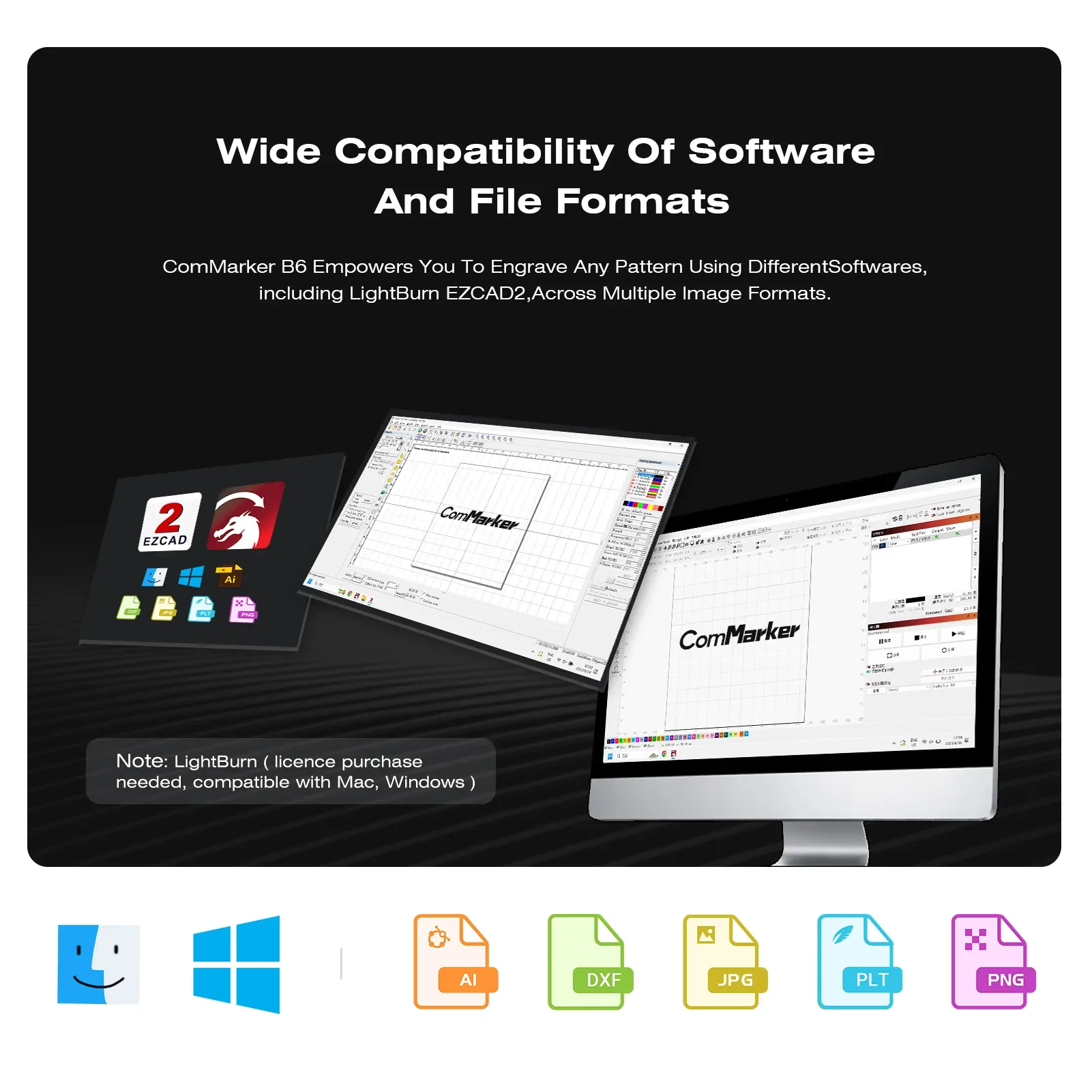

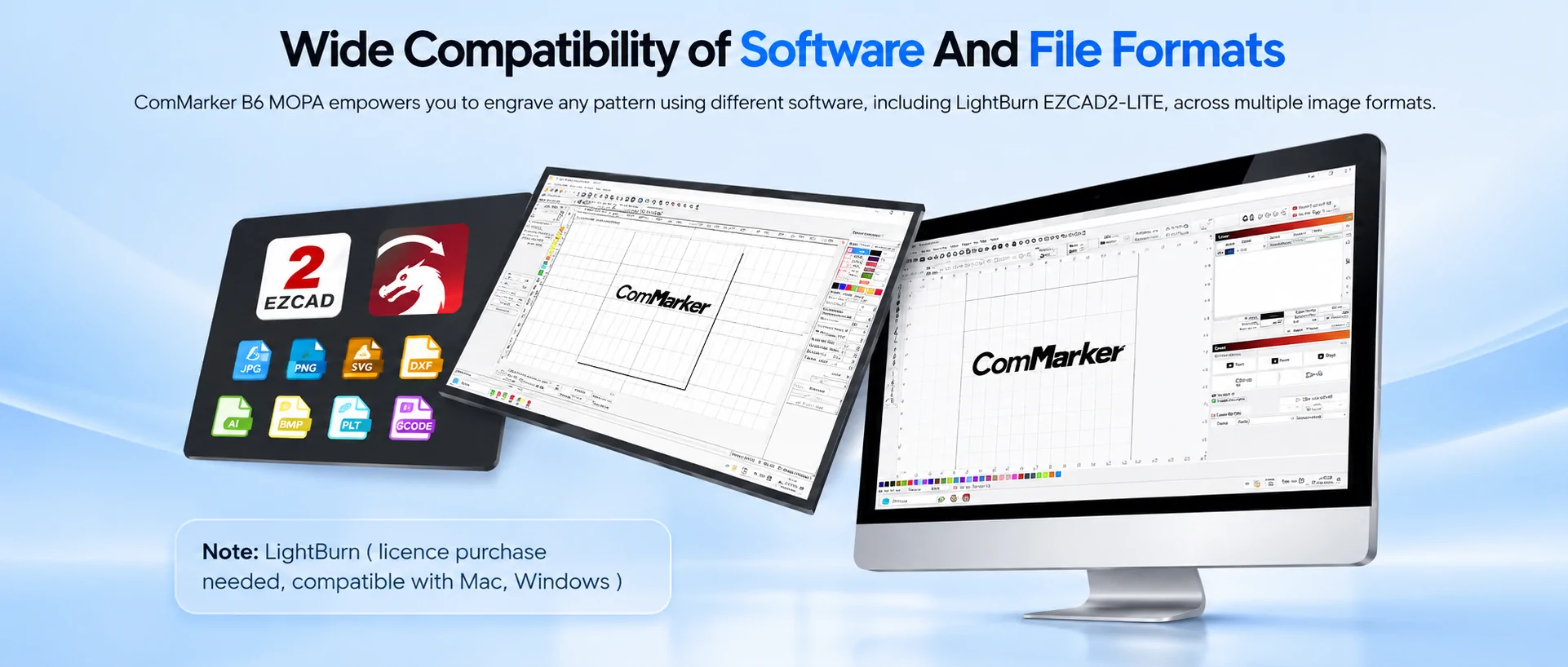

| Smart Software | Supported Software | EZCAD / LightBurn |
| Operating System | Windows / macOS | |
| Connection Method | USB | |
| Supported Files | BMP, GIF, JPG, JPEG, DXF, DST, AI, TGA, PNG, TIF, TIFF, SVG, G-CODE, PLT, etc. | |
| Safety | Safety Certification | Class 1 Laser Safety (With Enclosure) |
| Class 4 Laser Safety (Single Machine) | ||
| Temperature Detection | Supported | |
| Door Sensor | Supported (With Enclosure) | |
| Body | Build Volume | 16.9″ × 9.4″ × 21.7″ (430 × 240 × 550 mm) |
| Product Weight | 29.7 lbs (13.5 kg) | |
| Chassis & Shell | Aluminum, Steel, Acrylic | |
| General Information | Laser Frequency | 1–4000 kHz |
| Pulse Width | 2–350 ns (20W) | |
| 2–350 ns (30W) | ||
| 2–500 ns (60W) | ||
| Maximum Pulse Energy | 0.8 mJ (20W) | |
| 0.8 mJ (30W) | ||
| 2 mJ (60W) | ||
| Power Adapter Input Voltage | 100–230V | |
| Working Temperature | 50–83°F (10–28°C) |

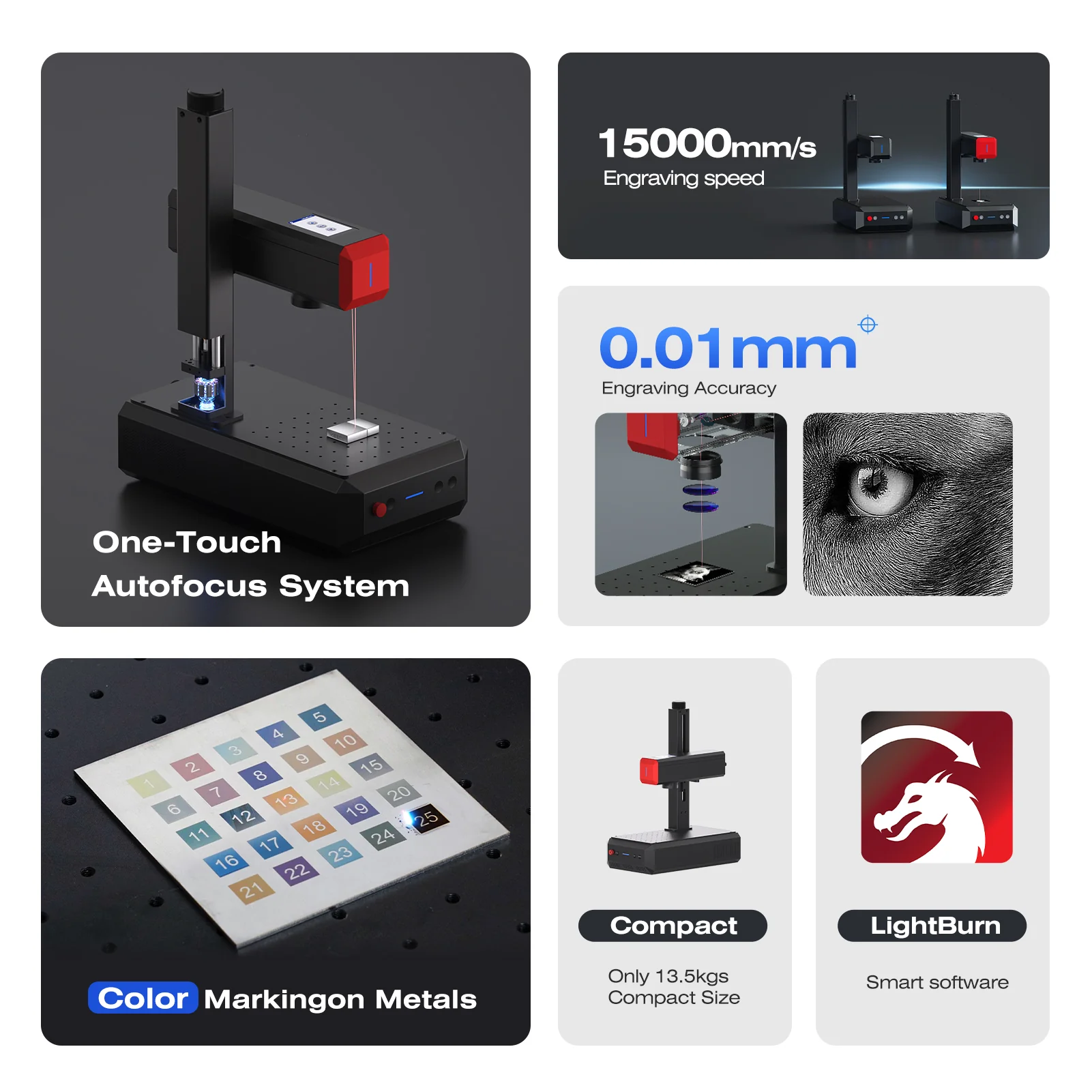

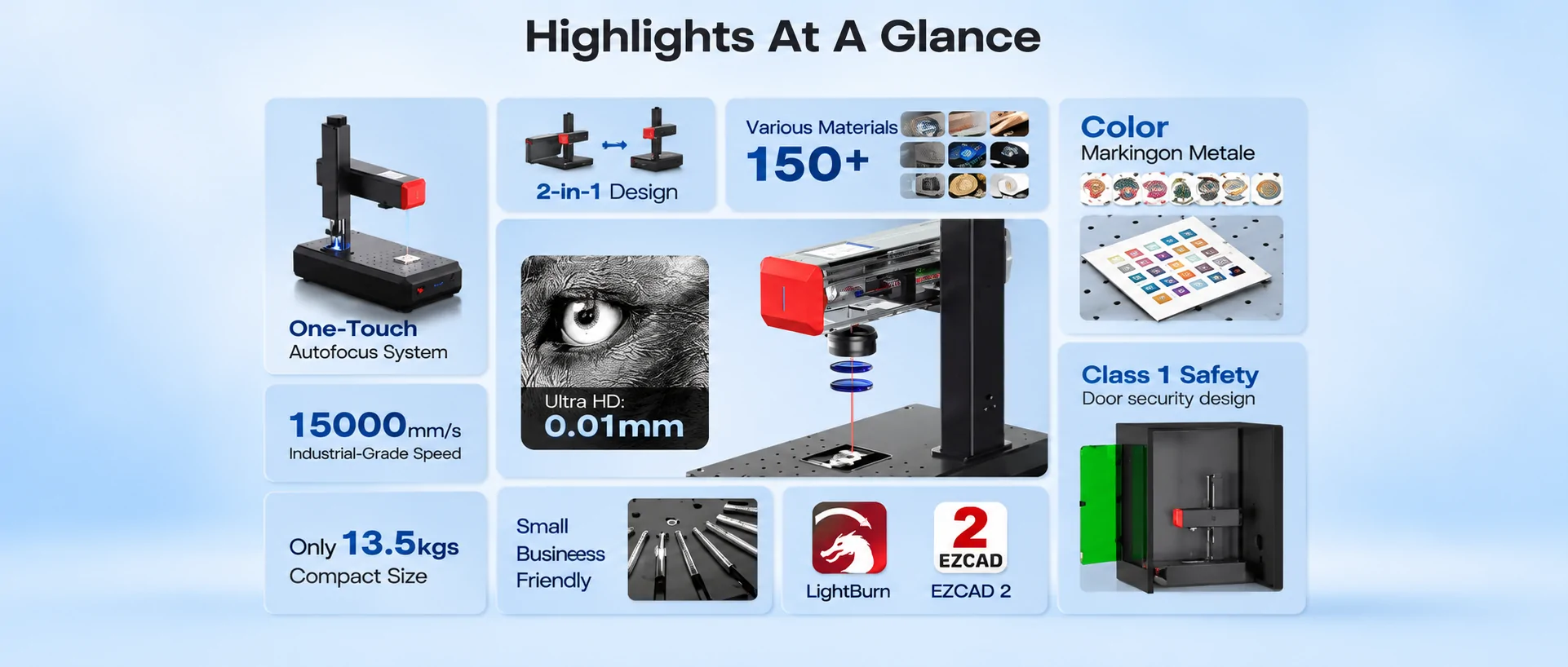

Welcome to the Era of Smart Color Engraving.

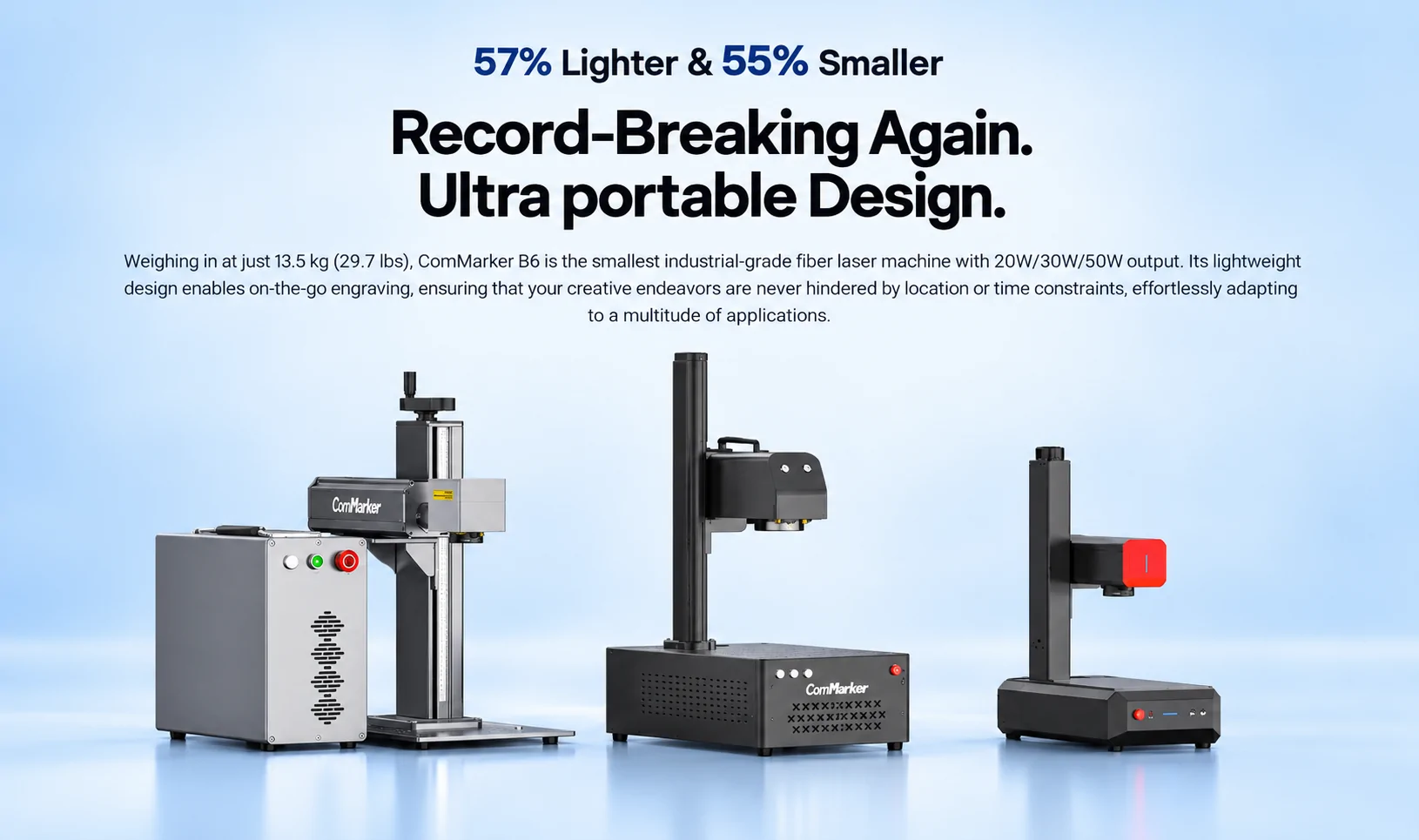

- Record-Breaking Compact Size
- Color Marking Ability

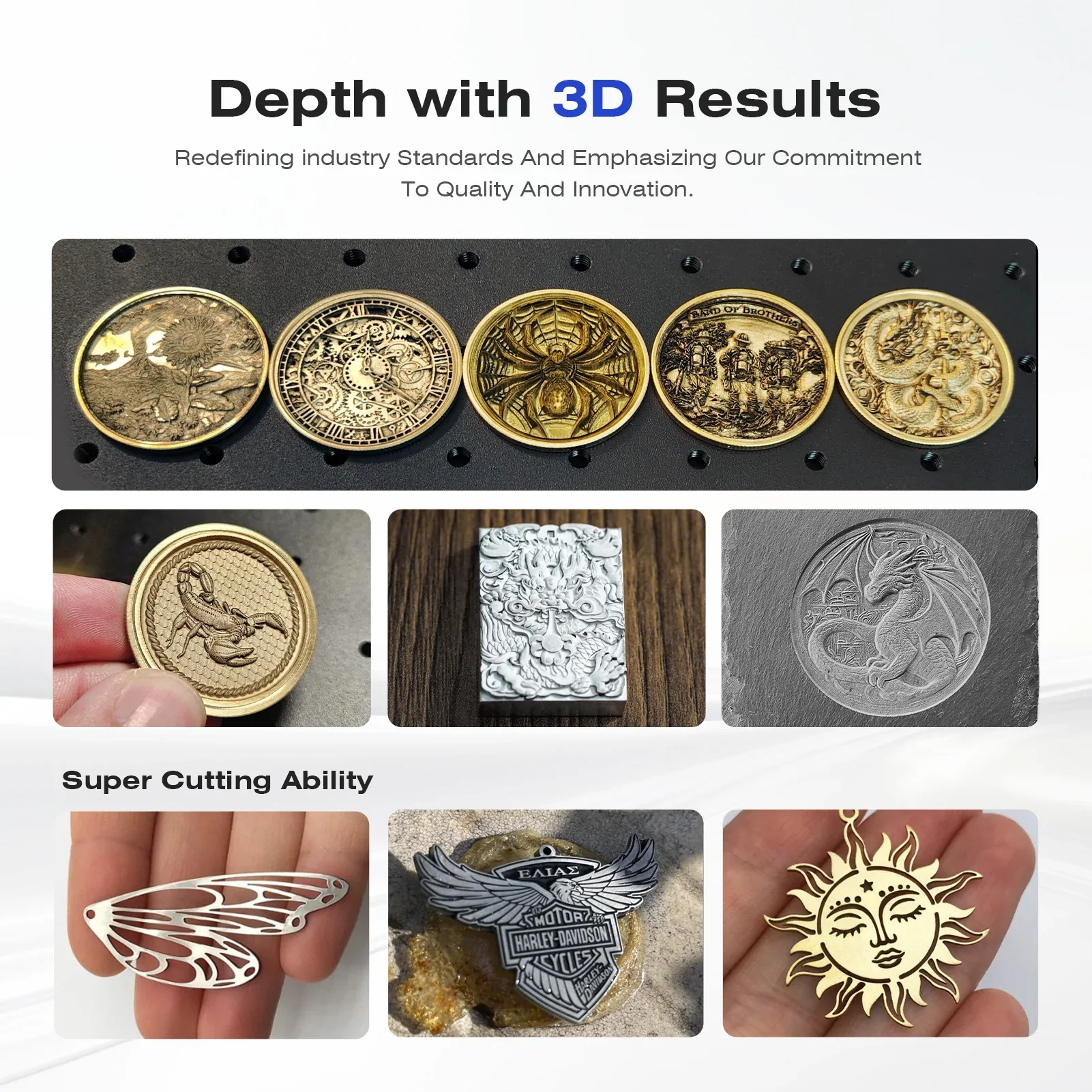

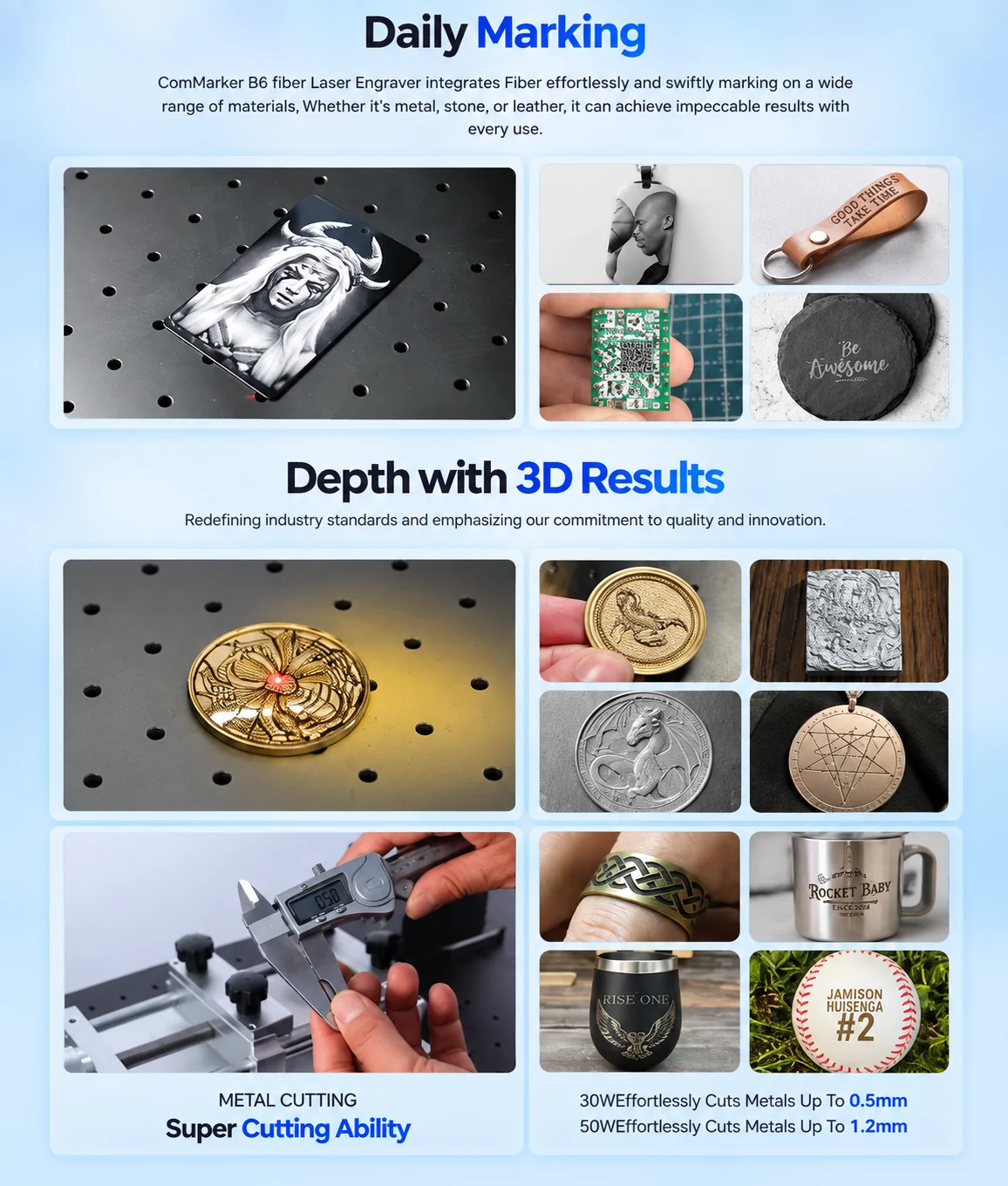

- Super 3D Engraving & Cutting Ability

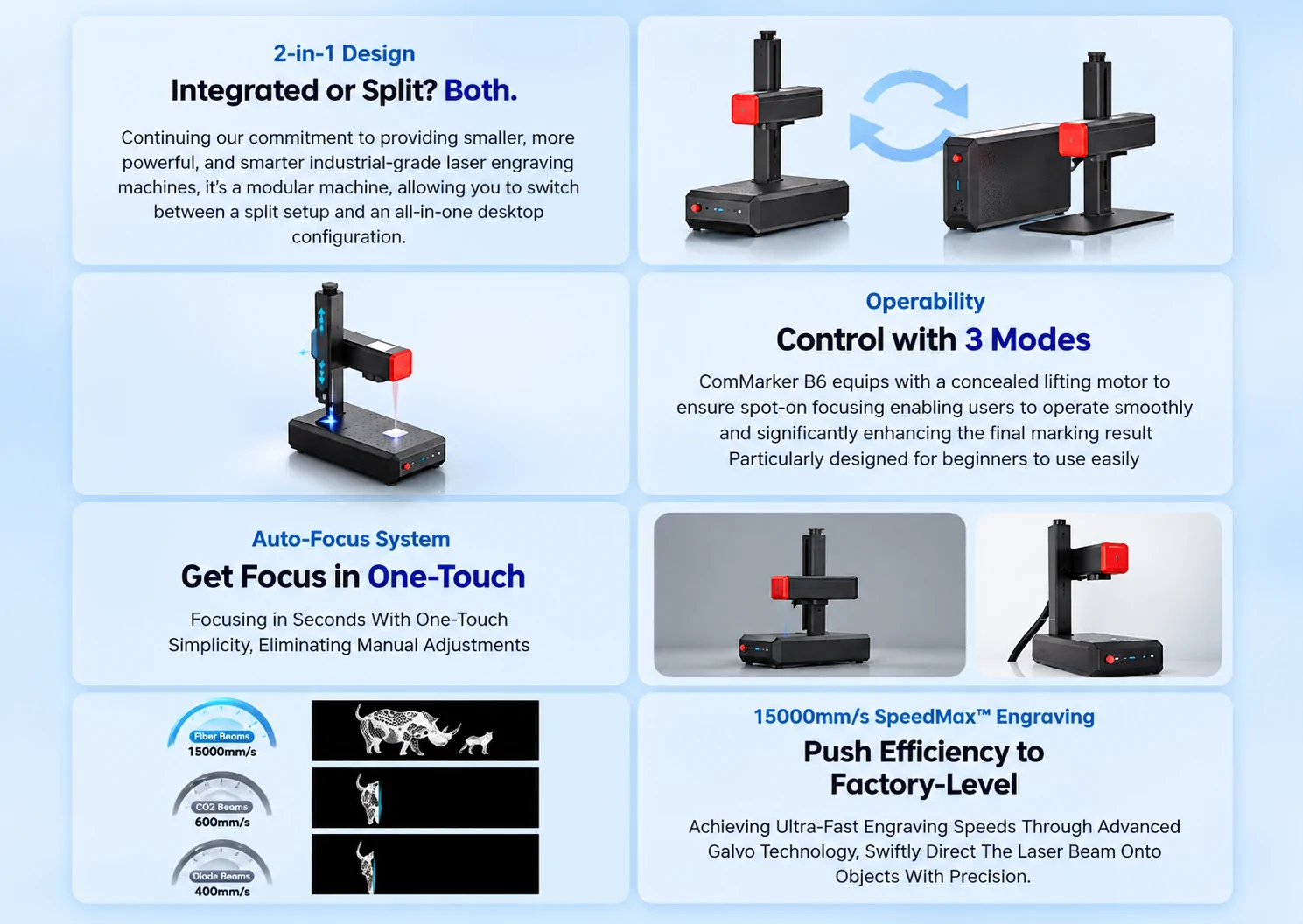

- 2-in-1 DesignAuto-Focus Technology
- 15,000mm/s SpeedMax™ Engraving

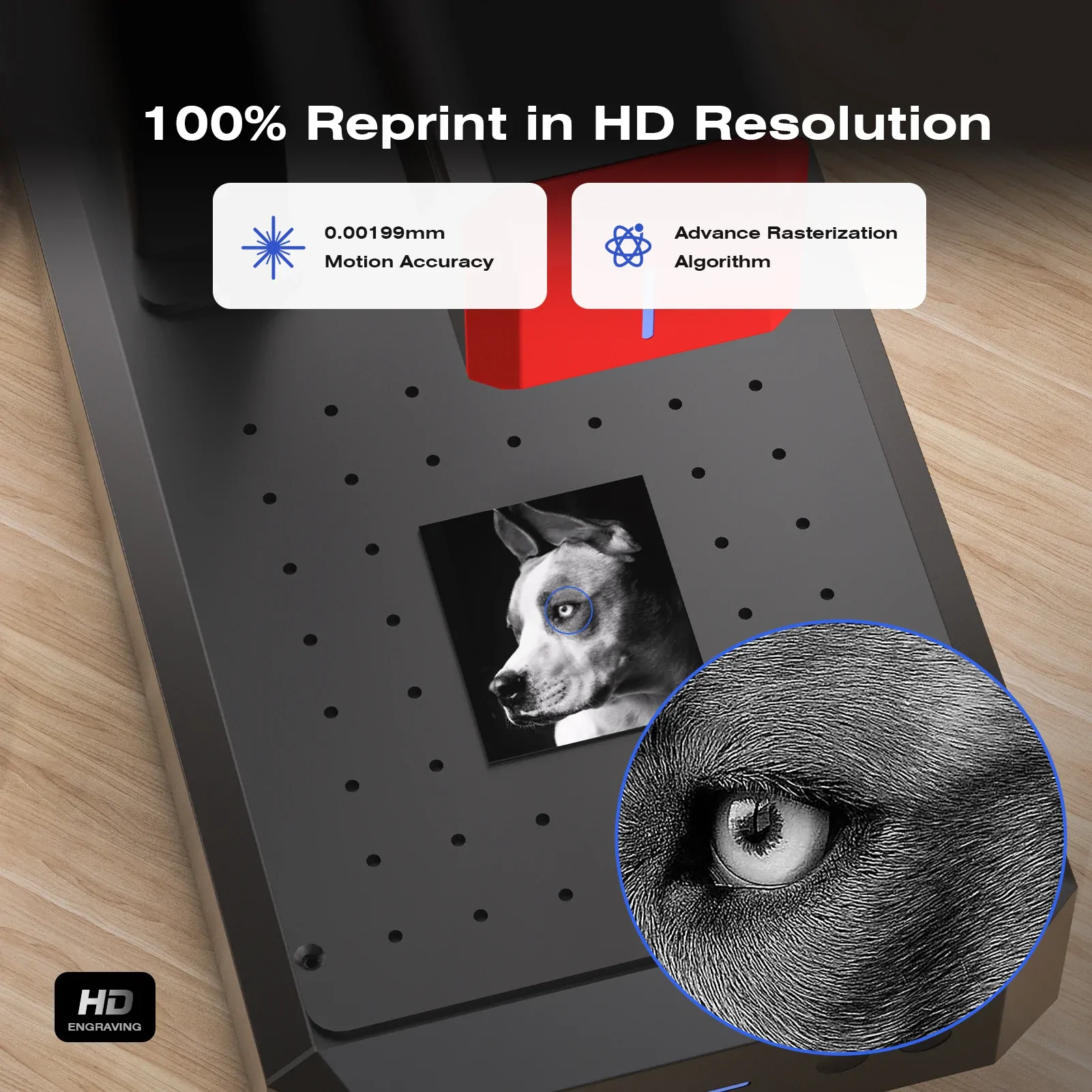

- 8K HD Accuracy
- Smart LED Touch Screen
