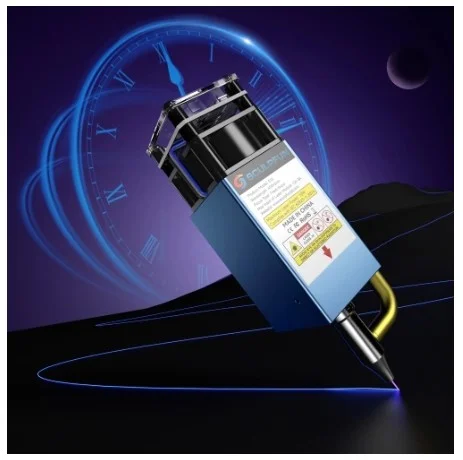

Sculpfun S10 Laser Module

The Sculpfun S10 Laser Module delivers 10W laser power for engraving and cutting. It uses a focused laser beam for detailed work. Moreover, the module supports many creative and professional applications.

The S10 works with wood, acrylic, leather, fabric, cardboard, and other compatible materials. Therefore, it suits DIY users, makers, workshops, and laser engraving businesses.

SCULPFUN S10 Laser Module High-Speed Air Assist 10W High-Density Laser Clean Cutting For Laser Engraving Machine Laser Cutting Machine Wood Acrylic Cutting Tools

Main Feature:

1. Powerful high-speed air assist: SCULPFUN S10 Laser Module has a high-speed air assist nozzle. The difference of this nozzle is that it has an advanced fluid mechanics design to utilize the air pressure better. When using the same air compressor, the S10 spray airflow faster. For example, when using 30L/min, 0.03Mpa air compressor, the S10 nozzle will spray high-speed airflow up to 14.5m/s. This will greatly improve the cutting penetration and cutting efficiency.

2. Widely compatible design: The SCULPFUN laser module has a clever and widely compatible structural connection device, which can be well adapted to different laser engraving machines, laser cutting machines, 3D printers, CNC milling machines, etc. It can be installed on a variety of brand machines, such as SCULPFUN S9/S6pro/S6、ATOMSTACK A5/A5Pro, ORTUR(12V Version) laser engraving machine, or other DIY type machines.

3. Ultra-thin high-density 10W laser beam shaping technology: The S10 laser output power is increased to 10W, which is twice that of the S9. ? But S10 obtains the same ultra-thin laser beam with 0.08mm focus as S9, which means S10 has higher energy density, more substantial cutting penetration, and engraving capabilities.

4. ? Faster, stronger, cleaner: Combining advanced high-speed air assist and 10W high-density laser, S10 shows comparable to industrial-grade wood cutting performance: First, the cutting efficiency is greatly improved, cut faster; Second, the cutting penetration is stronger, and many high-density kinds of wood can be cut; Third, the cutting surface is cleaner, ? the powerful airflow blows away the residue, so that there is no stain on the surface of the cutting object.

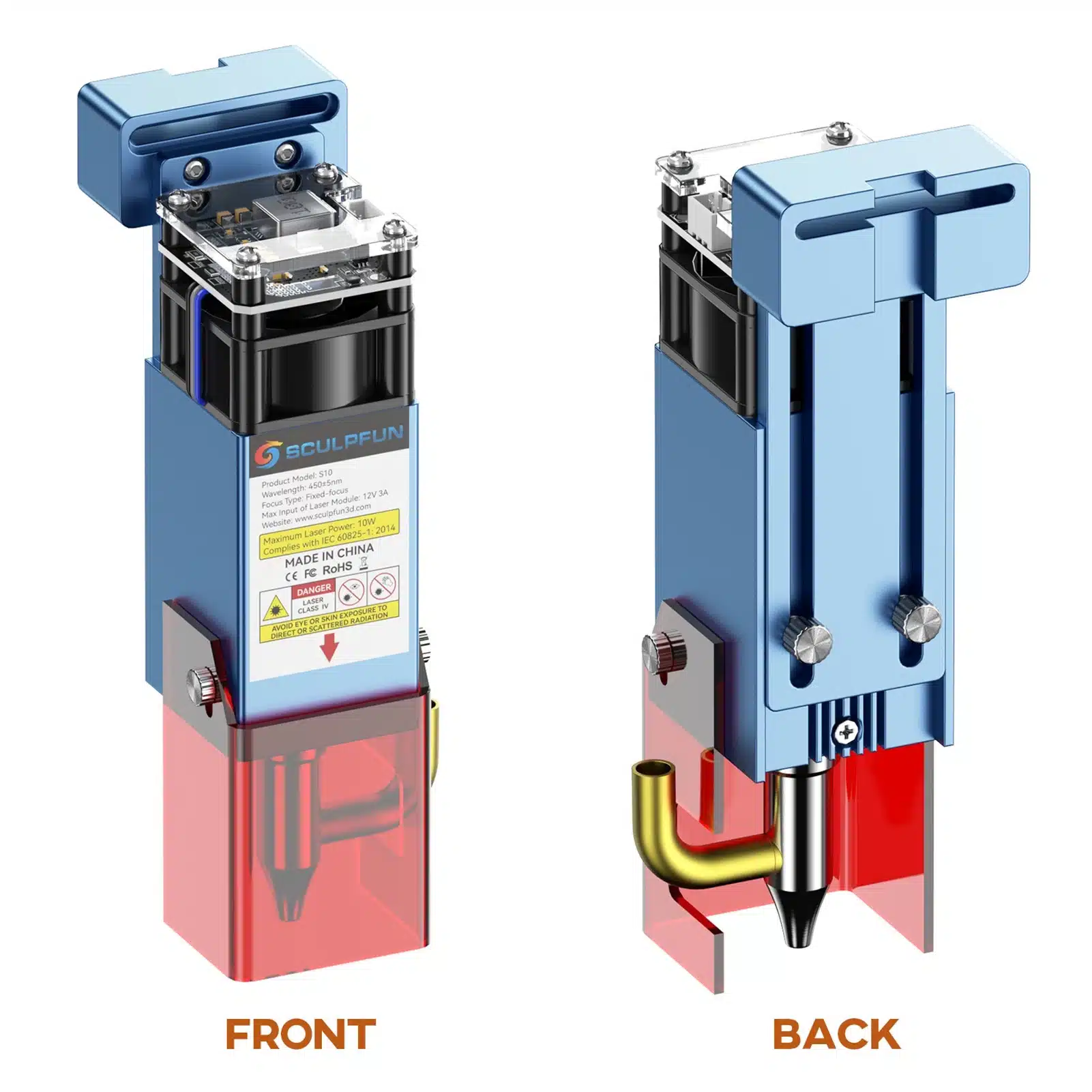

5. Adjustable laser eye shield: The S10 laser is equipped with a detachable eye shield, which will not dazzle even without glasses. And if you don’t need it, you can easily disassemble the eye shield.

6. General 12V/PWM modulation board: It uses a common 12V/PWM modulation board, which can be adapted to common GRBL or CNC motherboards. You can view product pictures for details.

Sculpfun S10 Laser Module Features

1. Powerful High-Speed Air Assist

The Sculpfun S10 Laser Module features a high-speed air assist nozzle. The nozzle uses improved fluid mechanics to deliver stronger airflow.

With a suitable air compressor, the nozzle can provide airflow up to 14.5m/s. As a result, the airflow helps improve cutting performance.

For example, users can pair the module with a 30L/min, 0.03MPa air compressor. This setup can improve cutting penetration and efficiency.

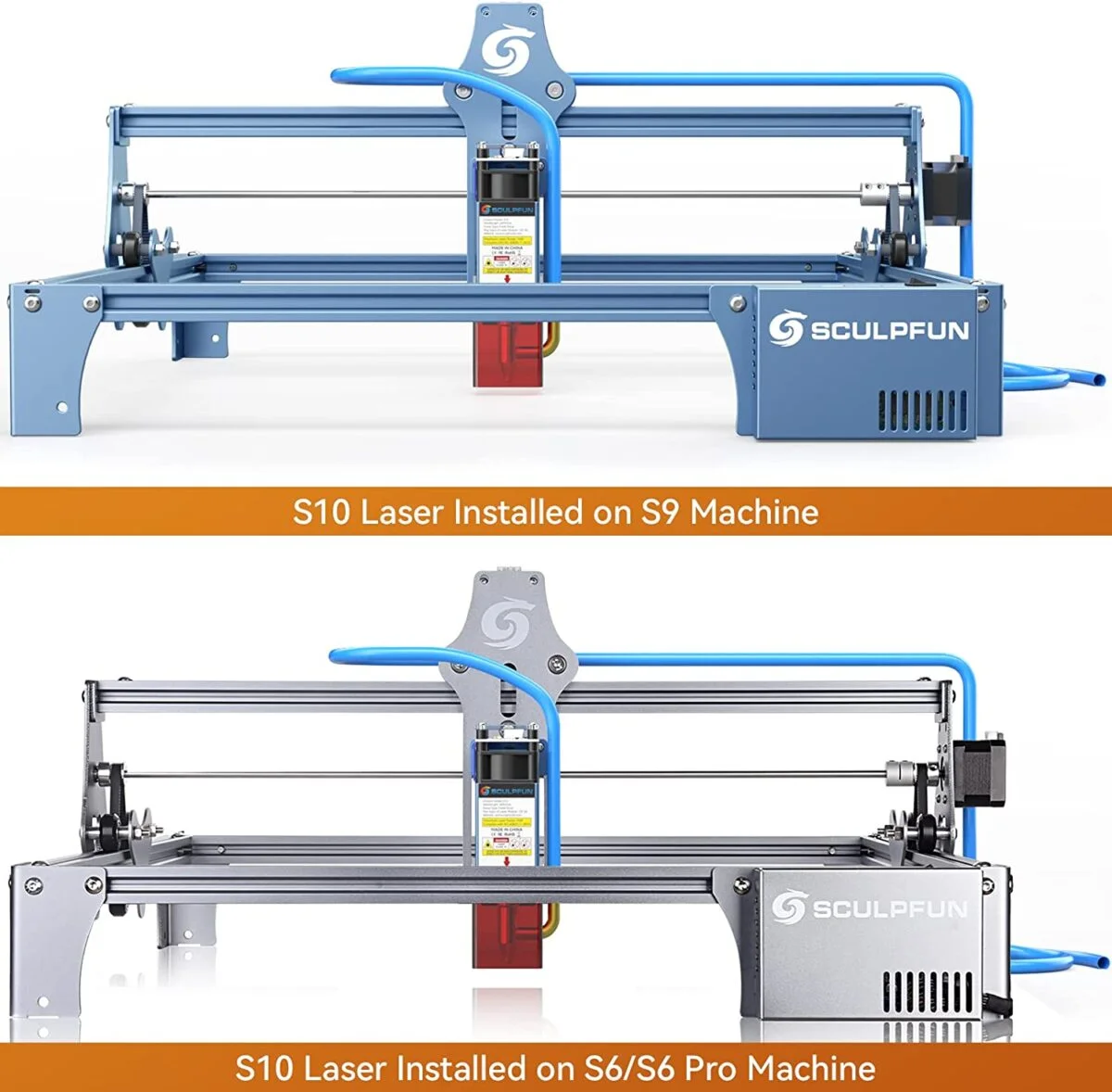

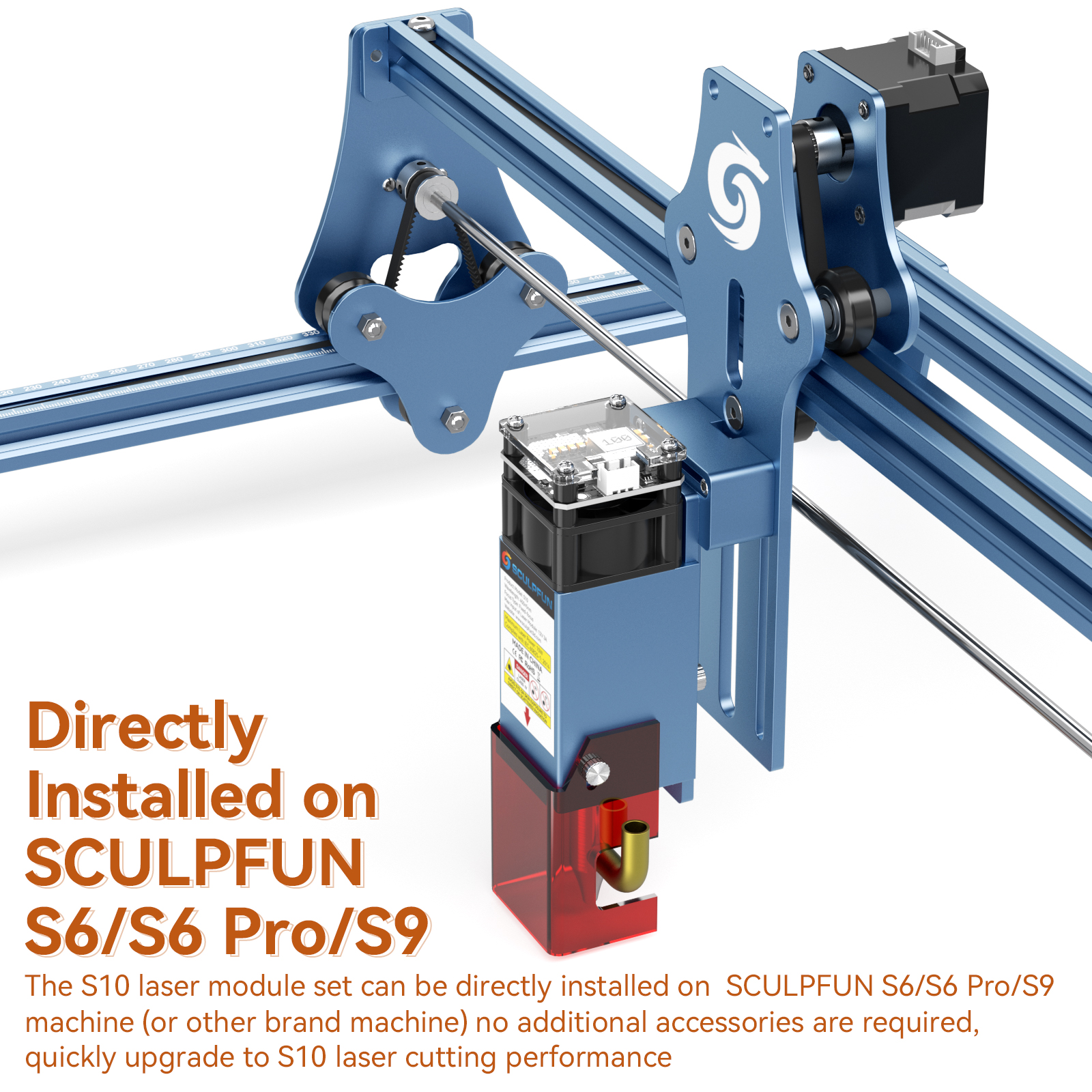

2. Wide Machine Compatibility

The Sculpfun S10 Laser Module supports several compatible machines. Moreover, the module uses a practical structural connection design.

Compatible machines include:

• SCULPFUN S10
• SCULPFUN S9
• SCULPFUN S6 Pro
• SCULPFUN S6
• Atomstack A5
• Atomstack A5 Pro
• ORTUR 12V versions
• Compatible DIY laser machines

Therefore, always check the voltage and connector type before installation.

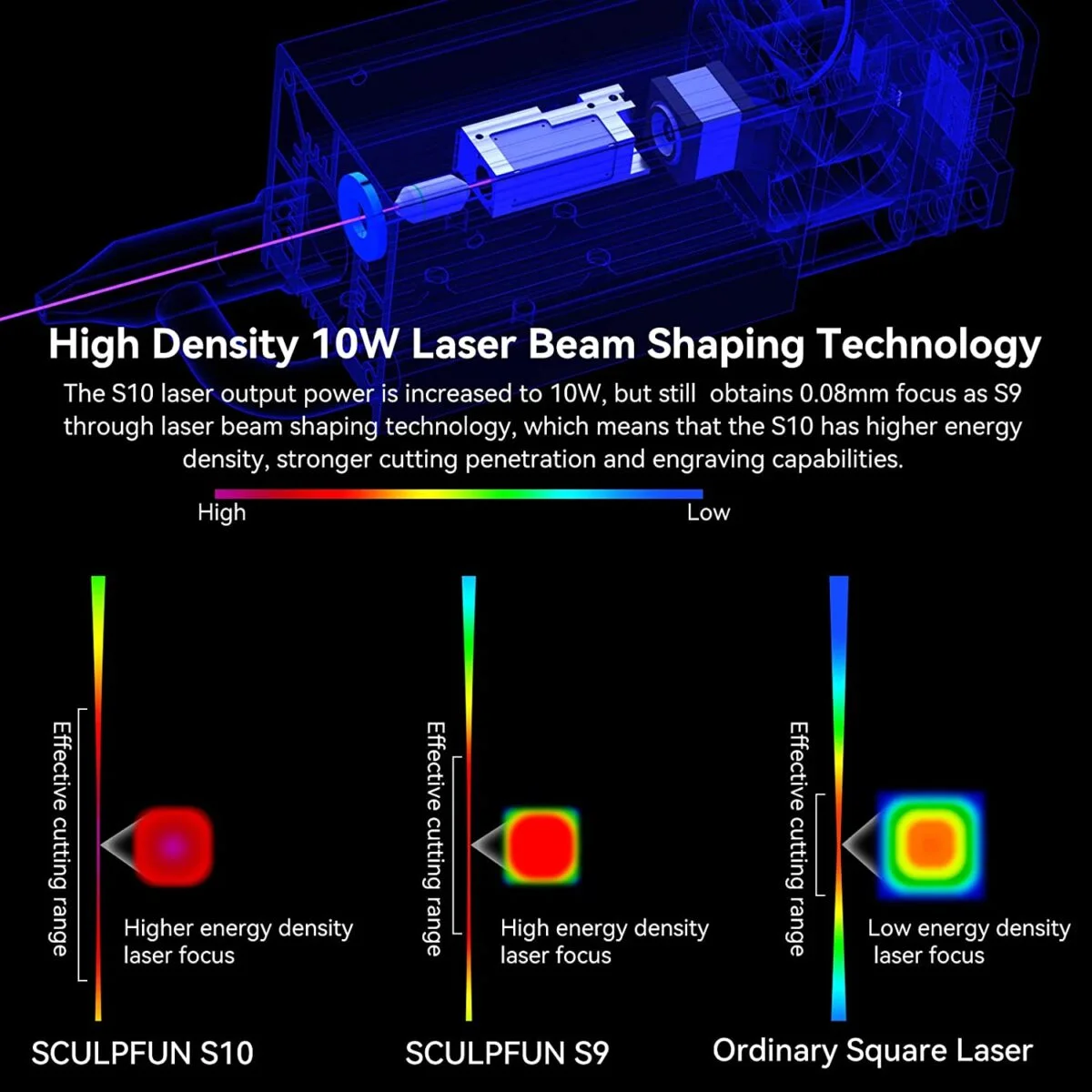

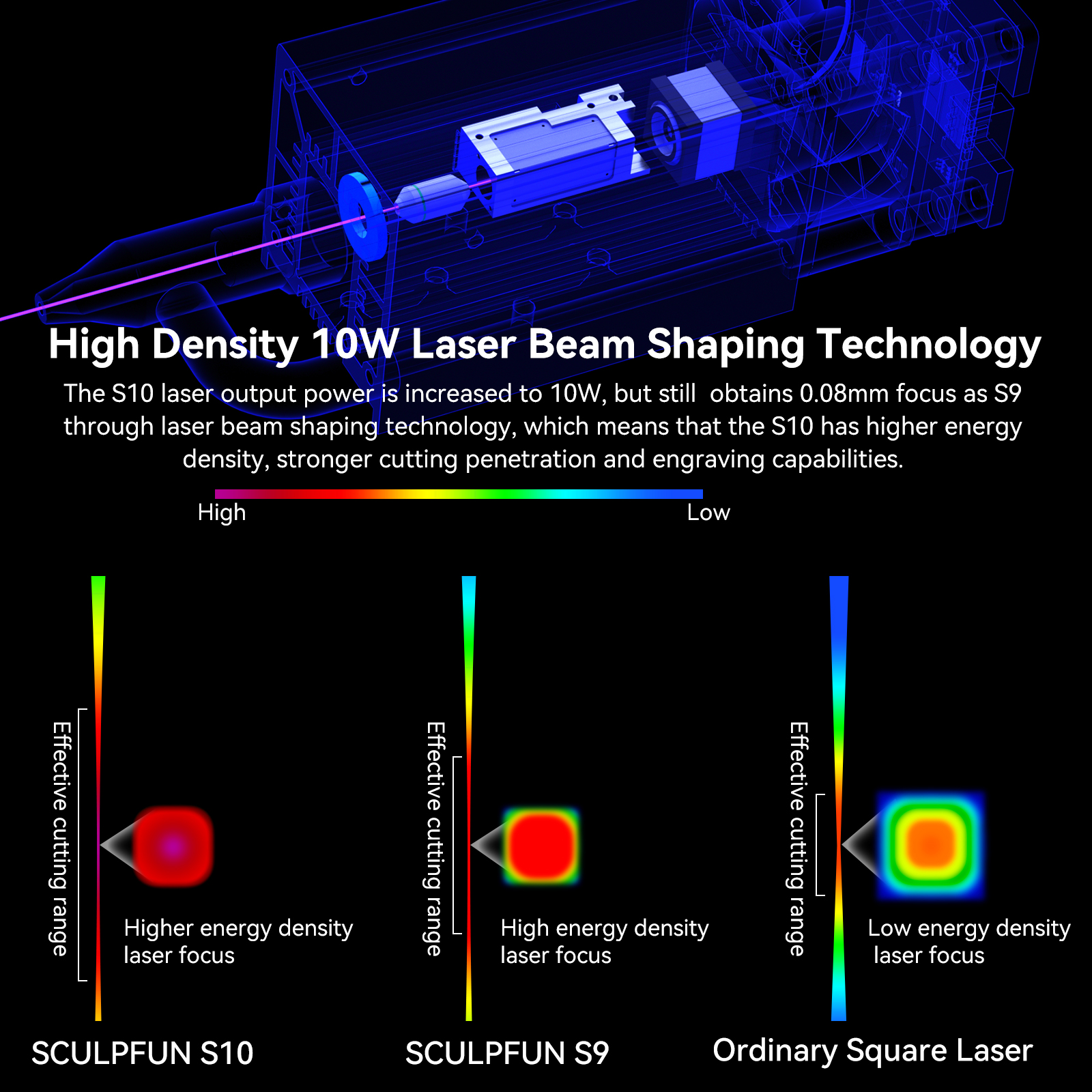

3. High-Density 10W Laser Beam

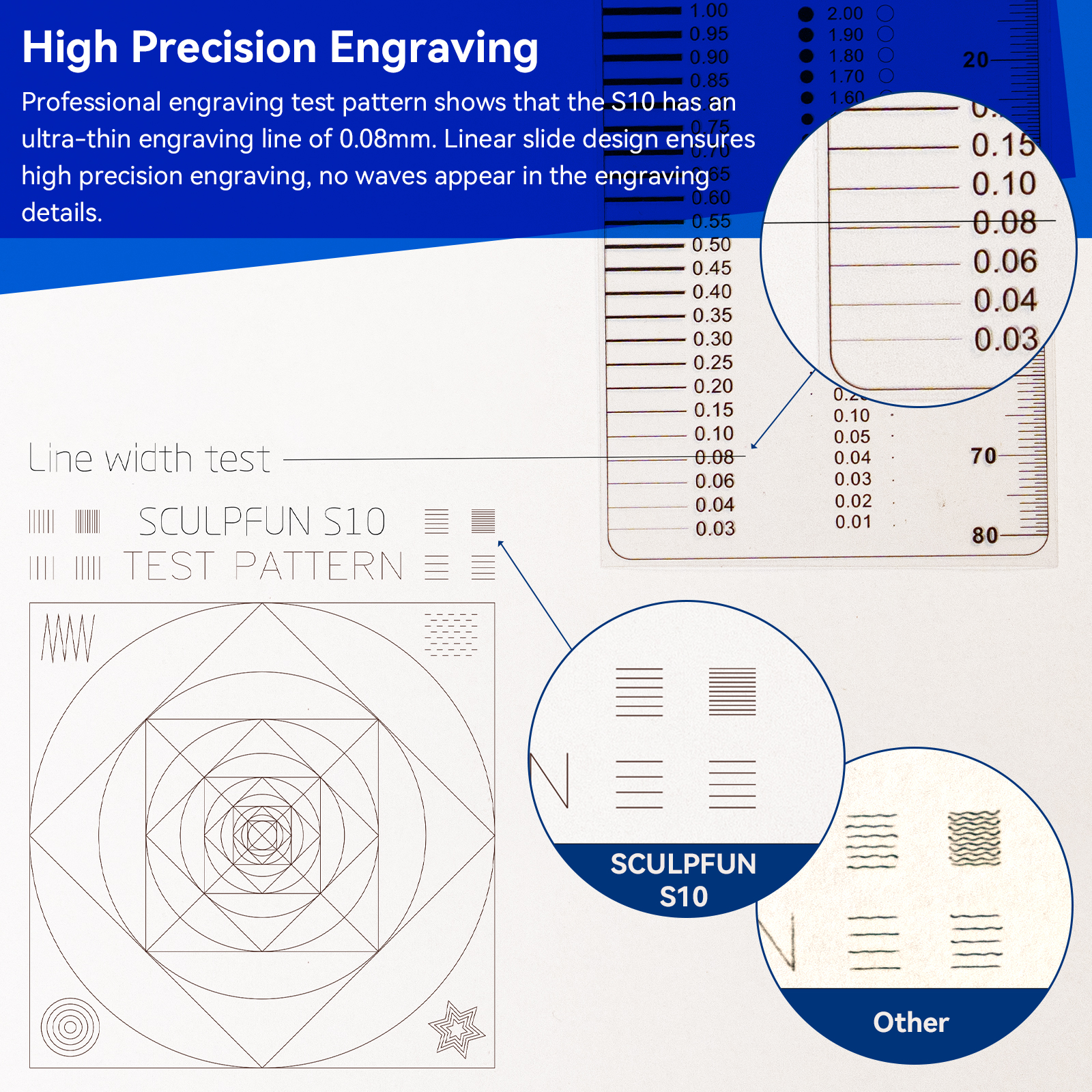

The S10 provides 10W laser output power. In addition, it uses a fine laser beam with approximately 0.08mm focus.

As a result, the module provides high energy density for detailed engraving. It also supports stronger cutting performance on suitable materials.

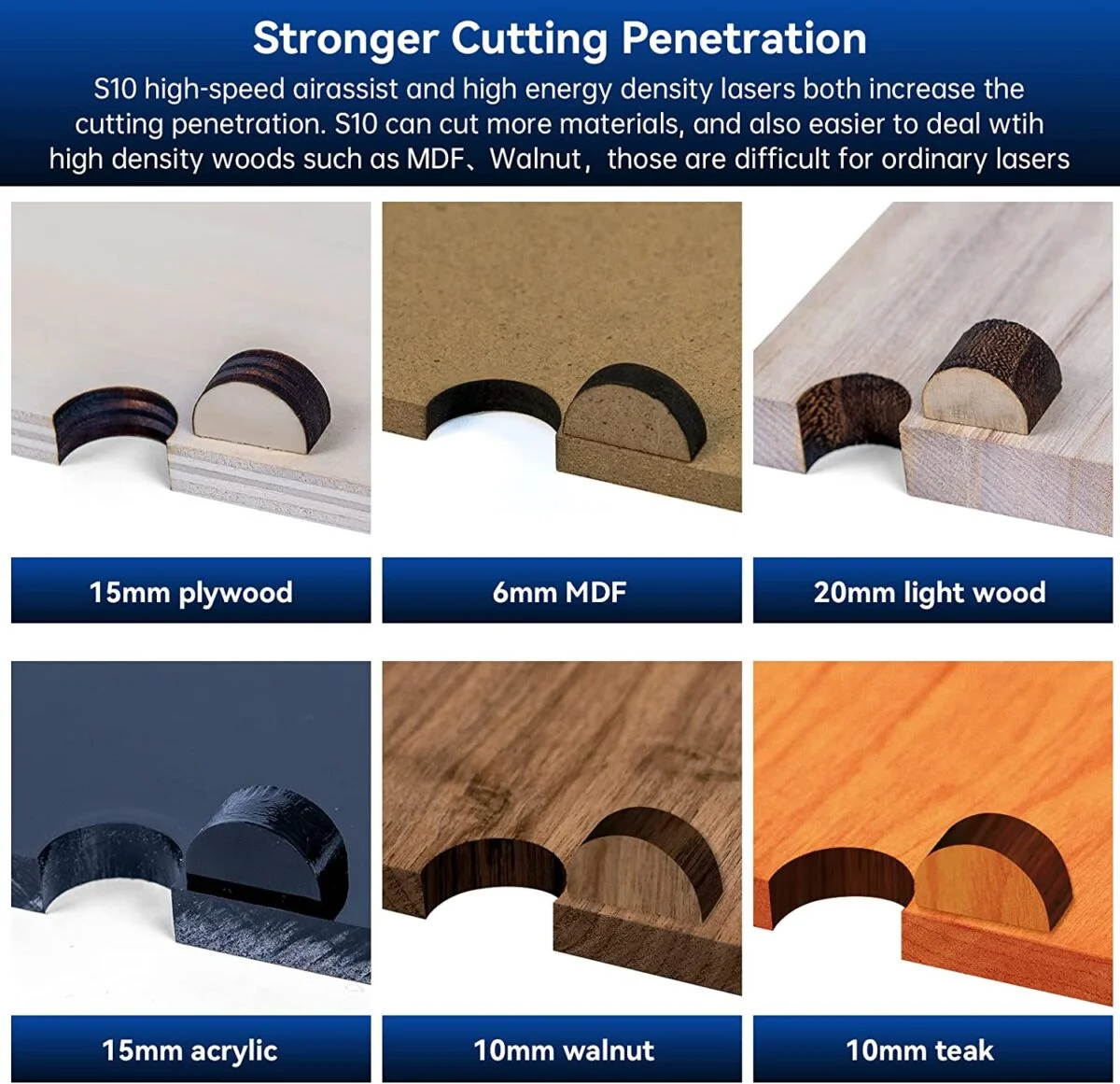

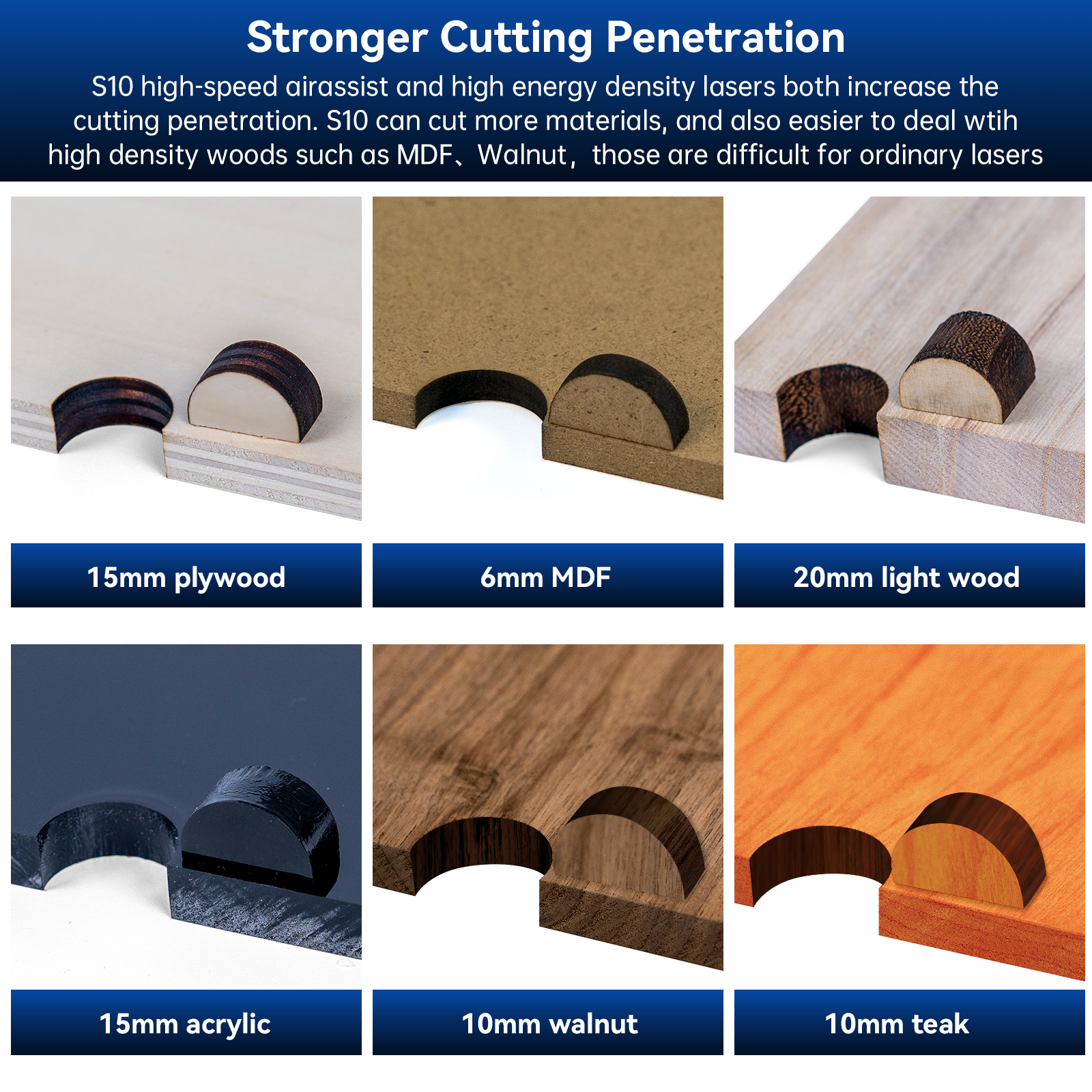

4. Faster and Cleaner Cutting

The Sculpfun S10 Laser Module combines 10W laser power with high-speed air assist. Therefore, it can improve cutting efficiency on suitable materials.

Moreover, strong airflow moves smoke and residue away from the cutting area. As a result, users can achieve cleaner cutting surfaces.

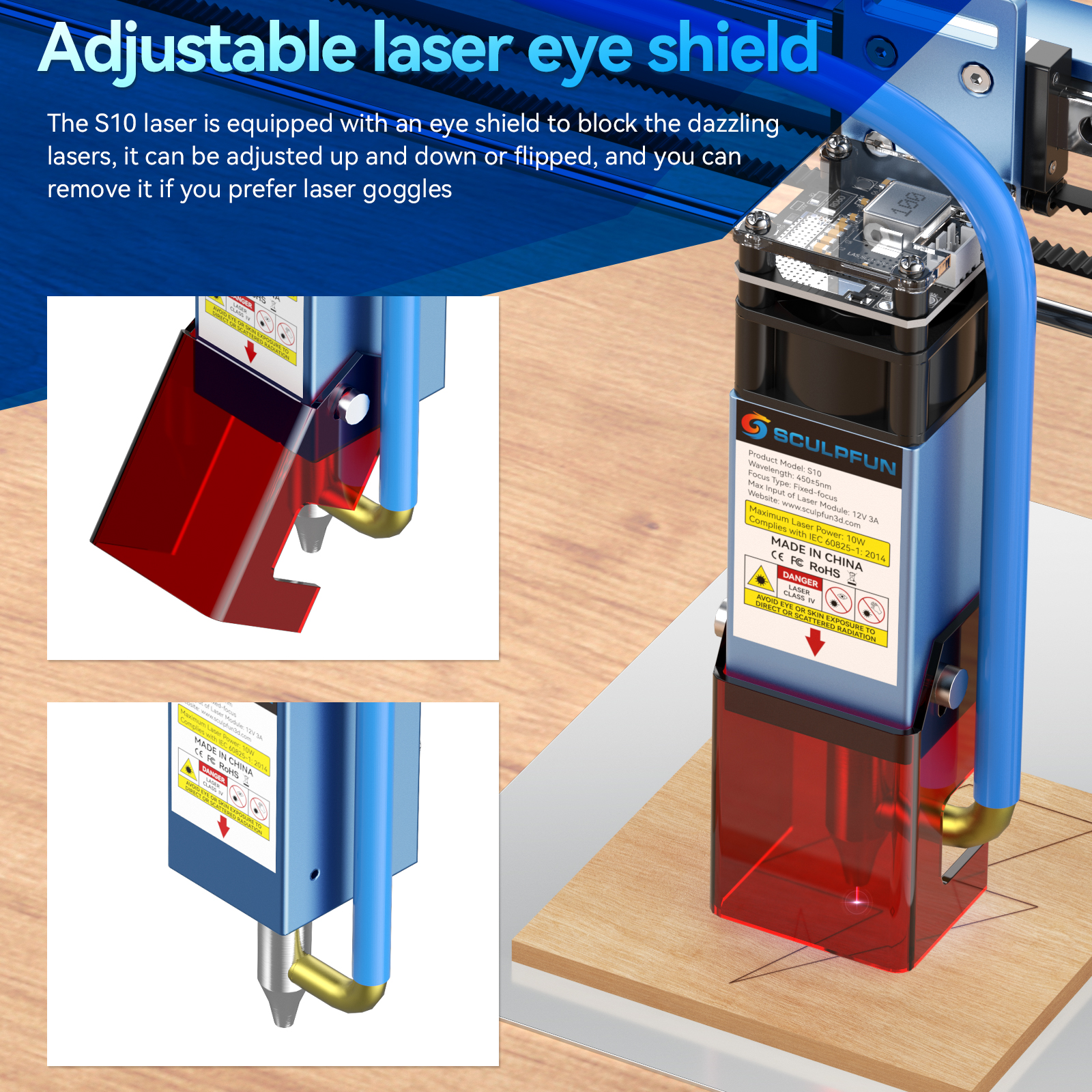

5. Adjustable Laser Eye Shield

The S10 includes a detachable laser protection cover. This cover helps protect the user’s eyes from direct laser exposure.

In addition, users can adjust or remove the cover when required. However, always follow proper laser safety practices during operation.

6. 12V/PWM Modulation Board

The module uses a 12V/PWM modulation board. Furthermore, it can work with compatible GRBL or CNC control boards.

Therefore, users can integrate the module into suitable DIY laser setups.
