SCULPFUN S30 PRO MAX 20W Automatic Air-assist

Specification:

Model: SCULPFUN S30 PRO MAX
Power Input: 100-240V AC, 50/60HZ Output: 24V 5A
Engraving accuracy: 0.005mm
Engraving area size: 410*400mm
Machine power: about 120W
Diode laser output power: 20W (note that this is light energy not electrical energy)
Laser focus: 0.08×0.1mm
Laser wavelength 455±5nm
Focusing method: fixed focus column + sliding device
Laser protection cover: Equipped with a detachable laser protection cover to protect the eyes. You can adjust it up and down, or remove the goggles.

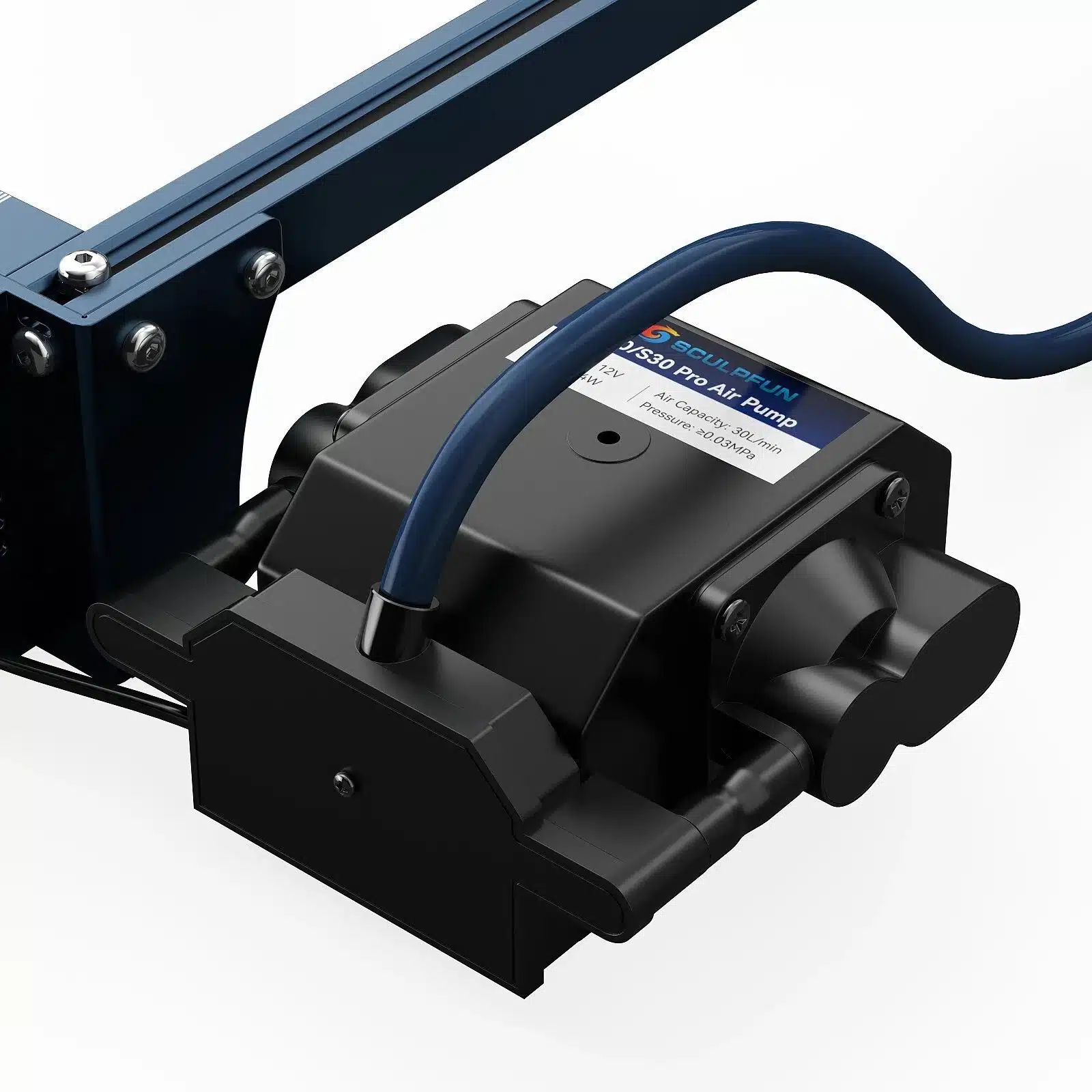

Air pump:
Type: mainboard-controlled air pump, voltage 12V, flow 30L/min
Air hose inner diameter: 7.5mm
Engraving material: all kinds of wood (including walnut, cherry and other high-density wood), MDF, zigzag, cardboard, plastic, leather, PCB board, aluminum oxide, 304 stainless steel, ceramic, dark stone
Cutting material: all kinds of wood (including walnut, cherry and other high-density wood), MDF, acrylic board, cardboard, non-woven, bamboo, leather, some plastic boards, PCB boards
Operating software: LightBurn (with air assist function M8), LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, support Windows system, support MAC system. Supported file formats NC, BMP, JPG, PNG, DXF and other image formats.
Data transmission method: USB connection or BT wireless connection
Package Size:? ? 62.3x24x22.5cm/24.5×9.4×8.8in
Package Weight:? 7530g/16.6lb

Packing List:

1 x S30 Po Max laser

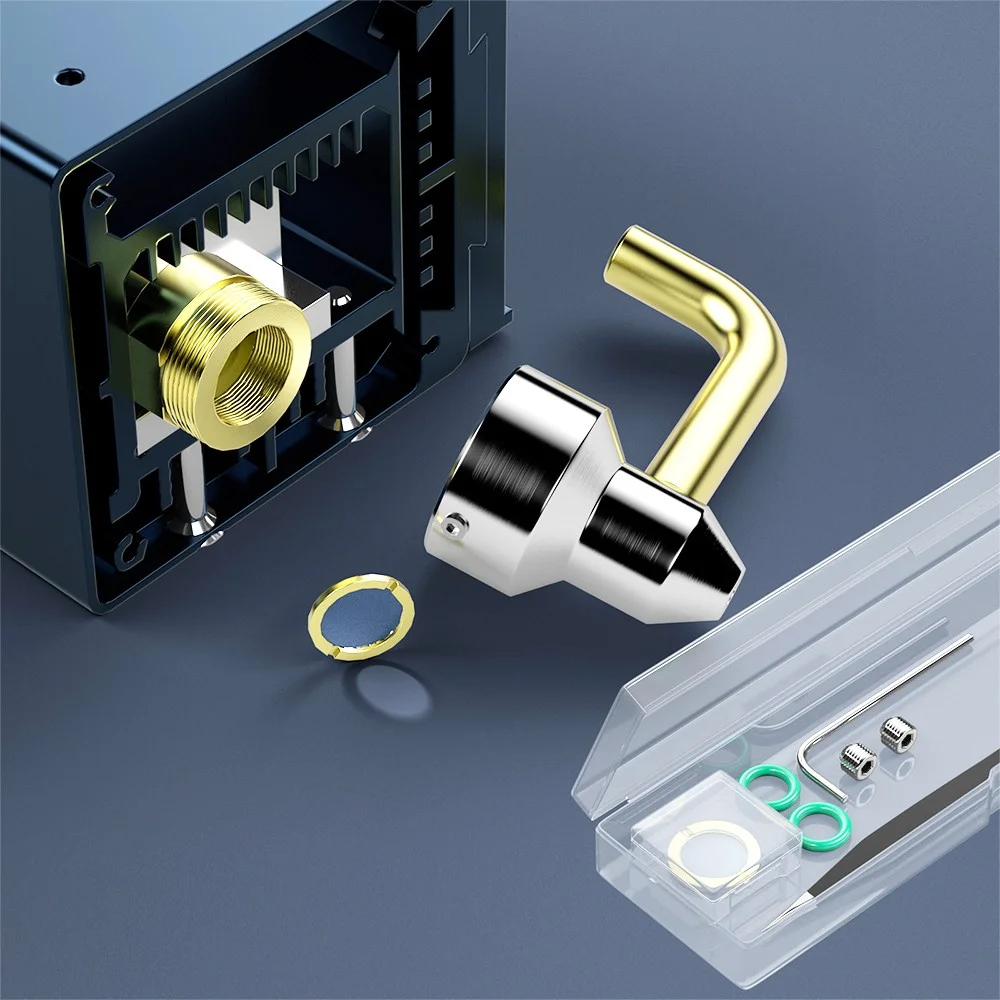

1 x Laser Repair Kit
1 x 12V automatic air pump
3 x A4 size 3mm wooden board
2 x Limit Switch
1 x 24V 5A power adapter
1 x power cord
1 x USB cable
1 x Air tube
1 x Installation tool Kit
1 x Laser Goggles
1 x A4 metal backing plate
Step 1-6 Install the package
1 x Manual
1 x X-axis assembly
2 x X profiles
2 x Y profiles
1 x Control Box Assembly
3 x support feet

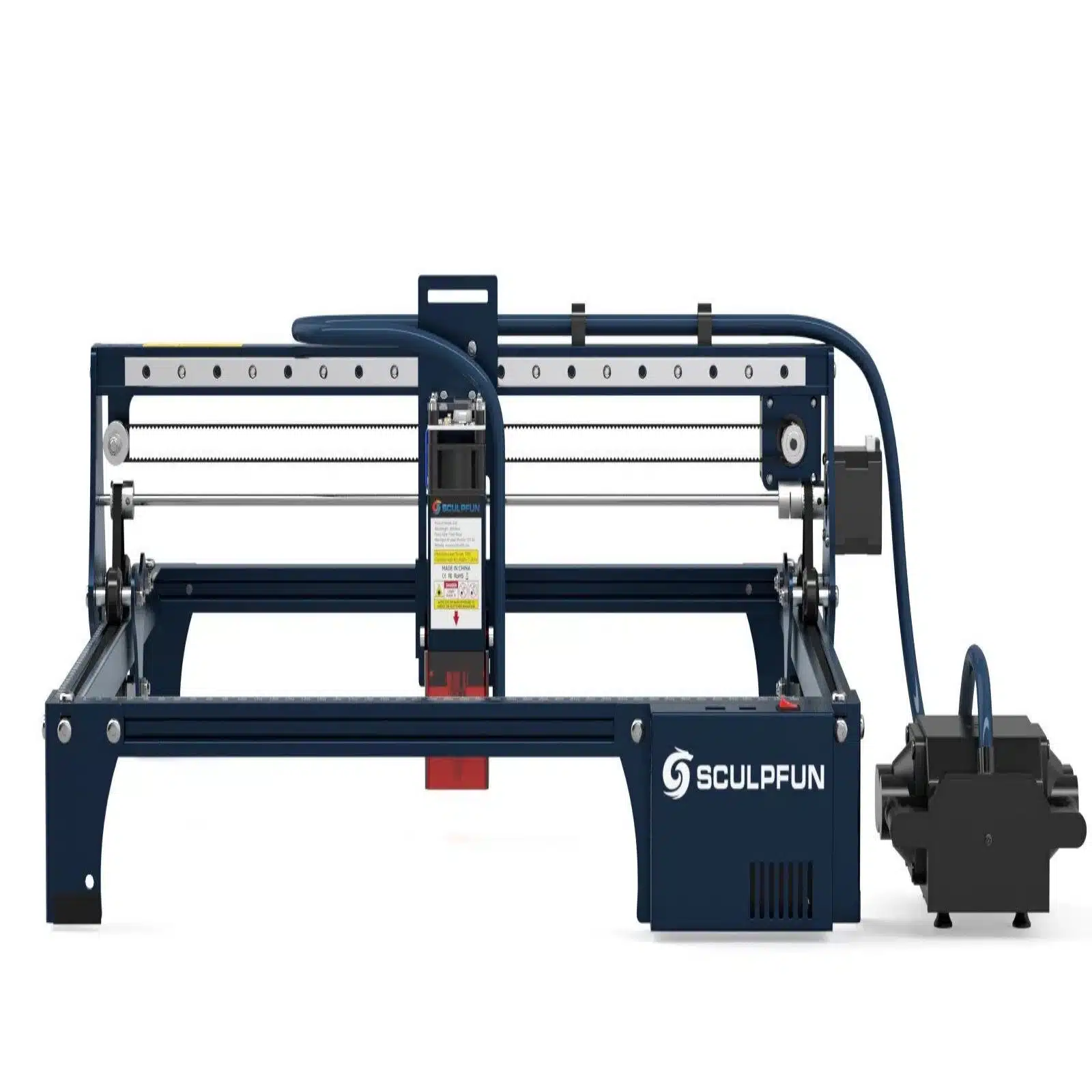

Sculpfun S30 Pro Max

The Sculpfun S30 Pro Max is a 20W laser engraver. It also supports laser cutting. Moreover, the machine has automatic air assist. Therefore, it suits workshops, businesses, and creative projects.

Powerful 20W Laser

The Sculpfun S30 Pro Max uses a 20W diode laser. The laser delivers strong engraving performance. In addition, it supports cutting on suitable materials.

 Automatic Air Assist

The machine includes automatic air assist. It provides steady airflow during cutting. As a result, smoke and debris move away from the cutting area. This helps create cleaner cuts.

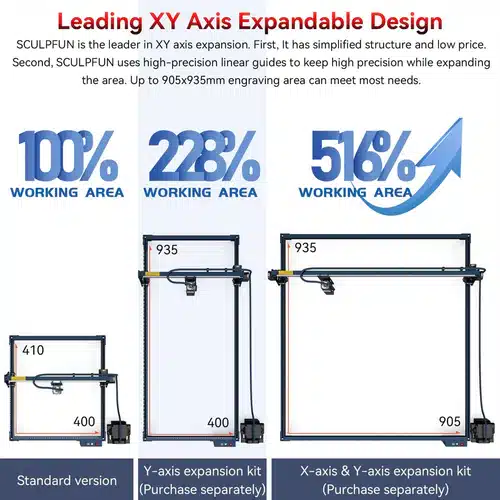

 Working Area

The standard working area is about 370×360mm. Therefore, you can work on different project sizes. Moreover, the frame supports expansion options for larger projects.

 Strong Aluminum Frame

The machine uses a strong aluminum alloy frame. This frame supports stable laser movement. Furthermore, it provides a solid structure for regular use.

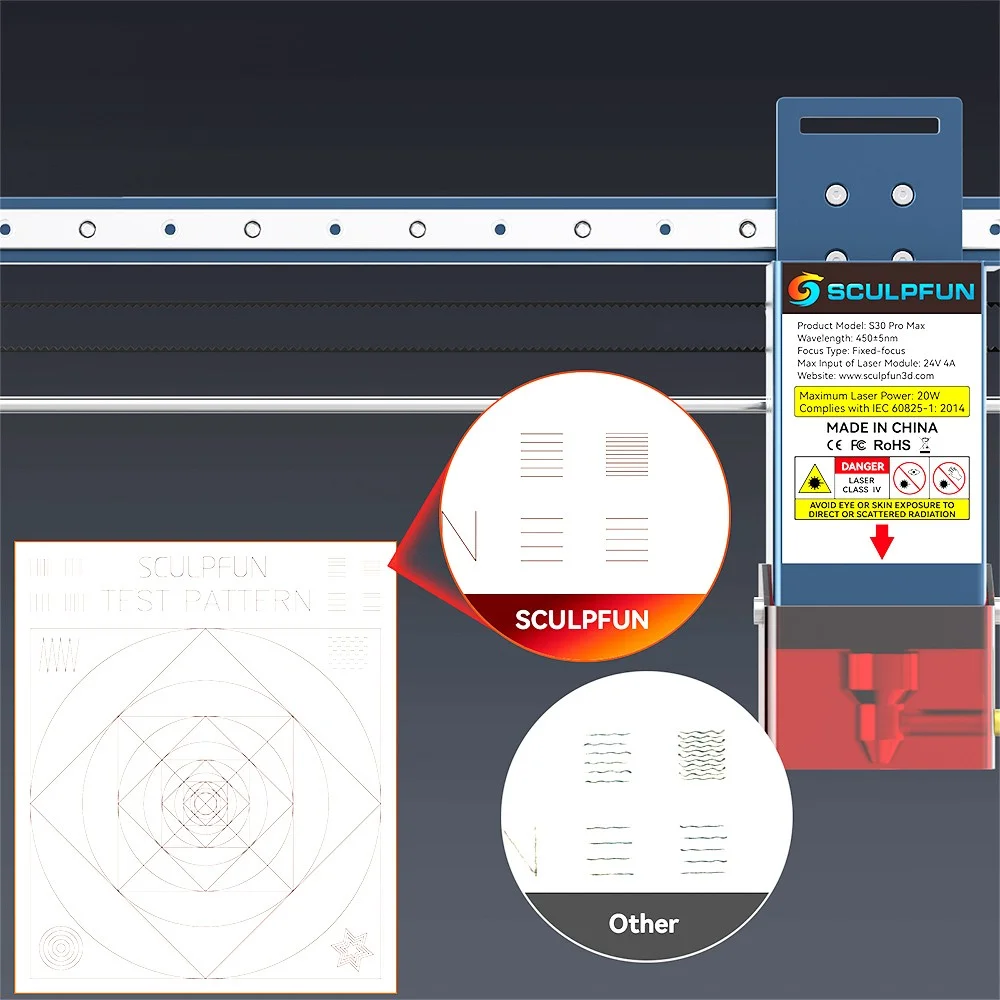

 Precise Engraving

The laser has a 0.08×0.10mm focus spot. It supports detailed engraving on suitable materials. In addition, the machine offers high engraving accuracy.

 Material Compatibility

The Sculpfun S30 Pro Max works with many suitable materials. For example, you can engrave wood, MDF, leather, cardboard, and acrylic. You can also cut several suitable materials.

 Software Support

The machine supports LightBurn and LaserGRBL. Therefore, you can create designs with popular laser software. In addition, USB connectivity makes setup simple.

 Safety Features

The machine includes a detachable laser protection cover. Moreover, the cover helps reduce direct laser exposure. Always follow the manufacturer’s safety instructions.

Key Features

– 20W diode laser
– Automatic air assist
– 370×360mm standard working area
– Expandable frame
– 0.08×0.10mm focus spot
– High-strength aluminum frame
– USB connection
– LightBurn support
– LaserGRBL support
– Detachable laser protection cover
